*NOTE: DISCONTINUED . WILL NOT RE-STOCK, ONCE STOCK IS GONE*

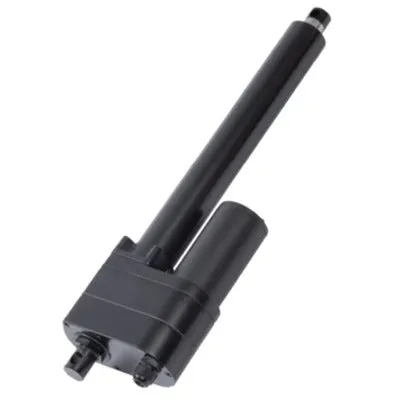

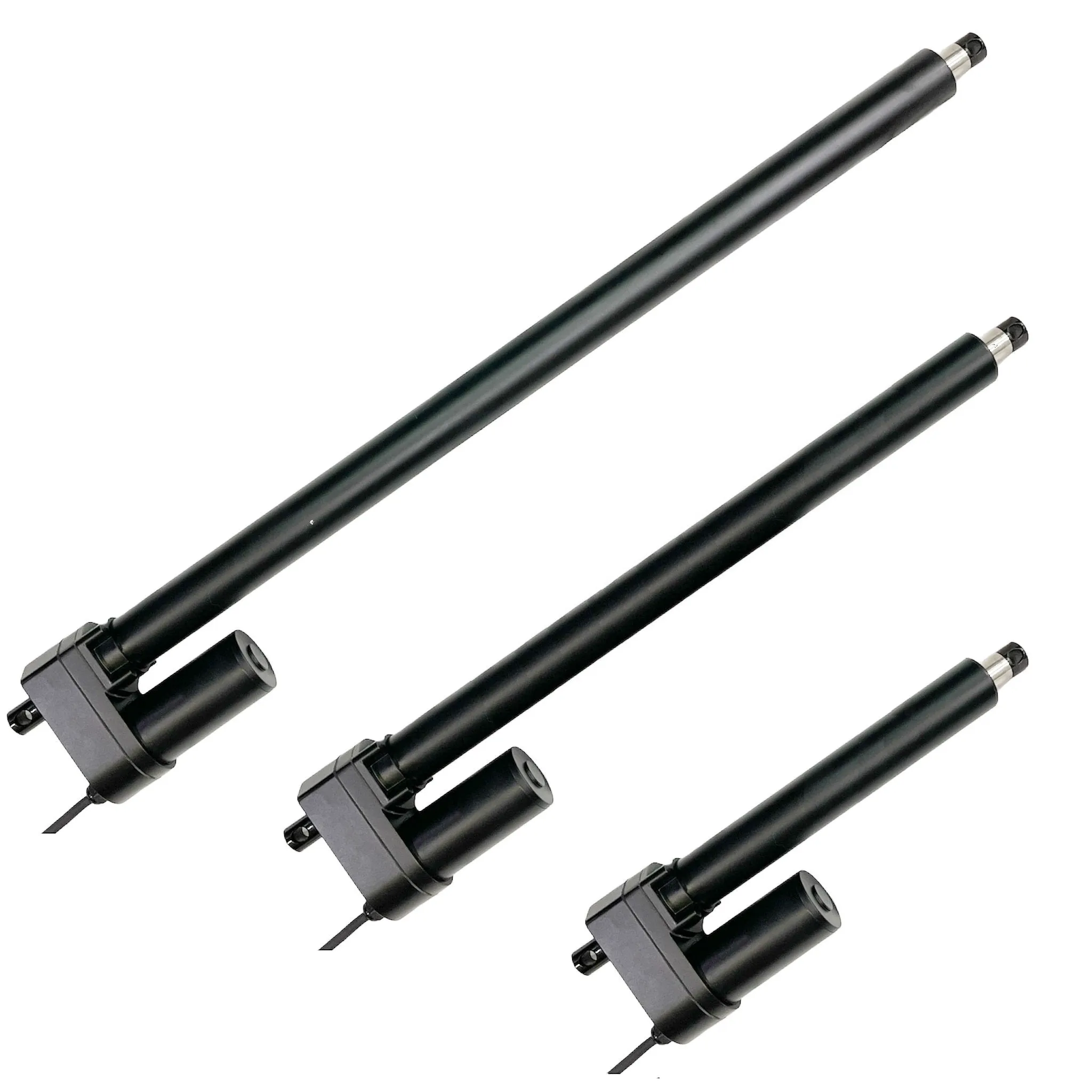

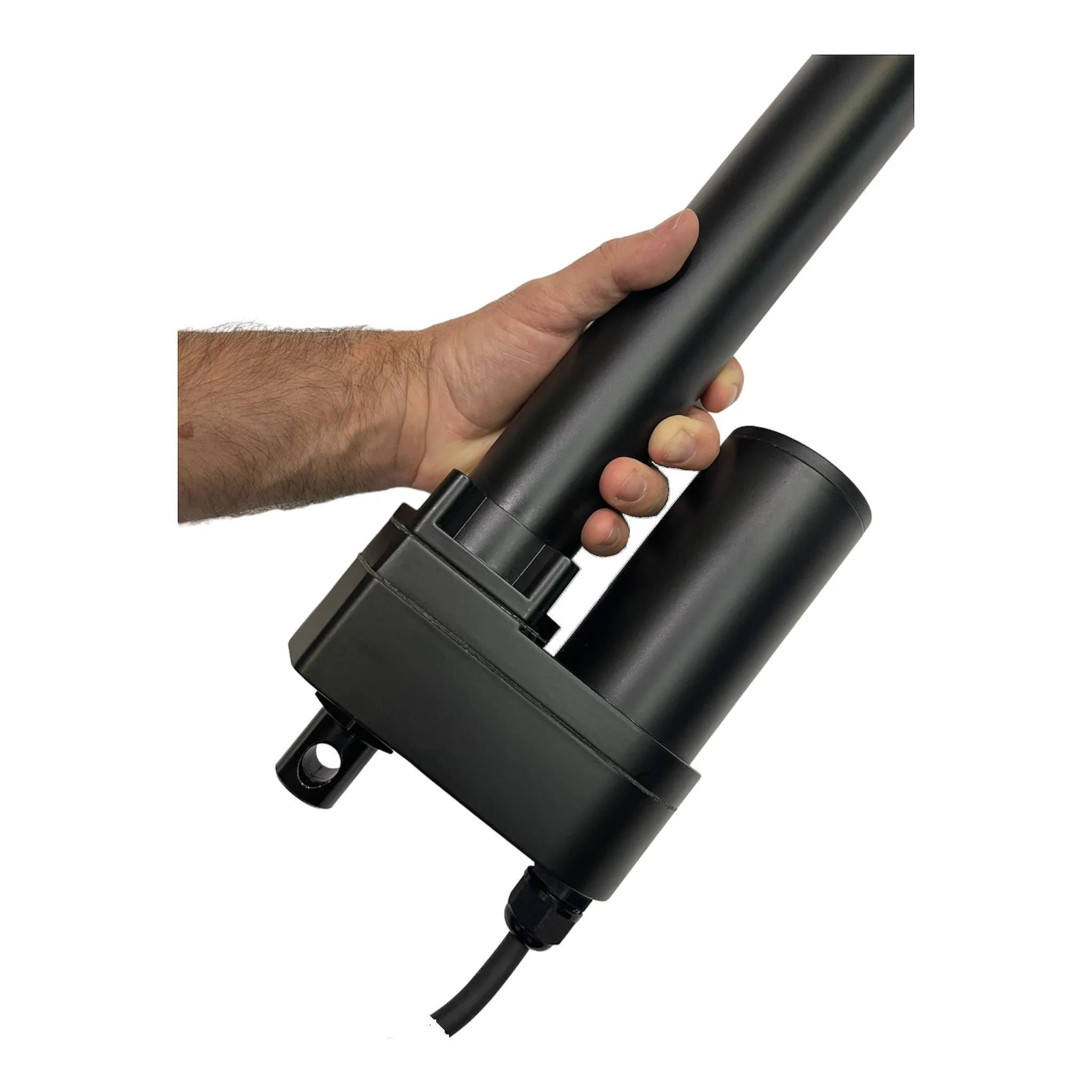

Introducing the Power Max Actuator, a cutting-edge electric linear actuator specifically engineered for heavy-duty applications requiring substantial force. Crafted from robust, durable materials, this actuator is built to withstand the most demanding tasks. With its integrated Feedback system, you can easily monitor and adjust performance as needed, ensuring optimal functionality. Additionally, the built-in Clutch provides essential overload protection, safeguarding the actuator from potential damage.

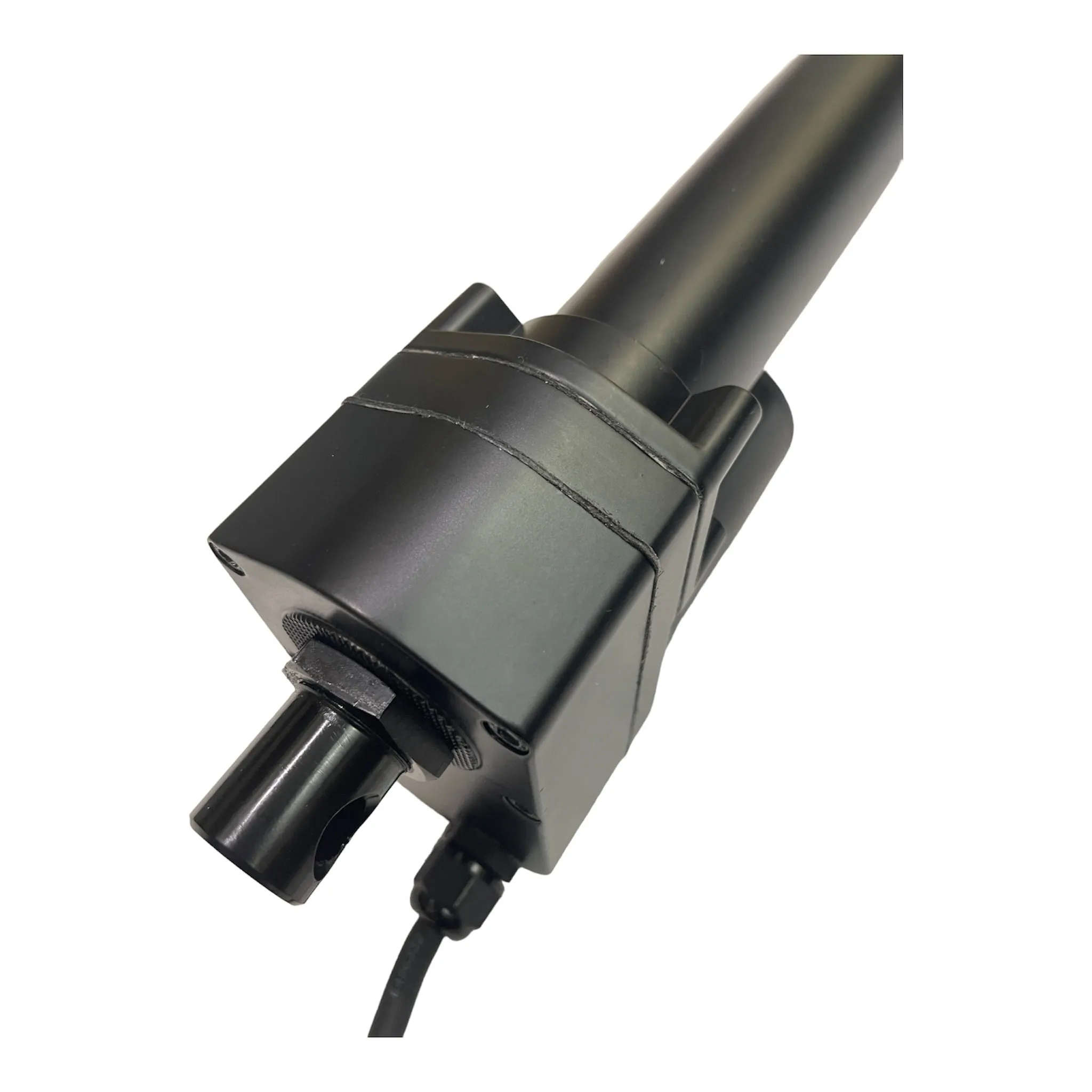

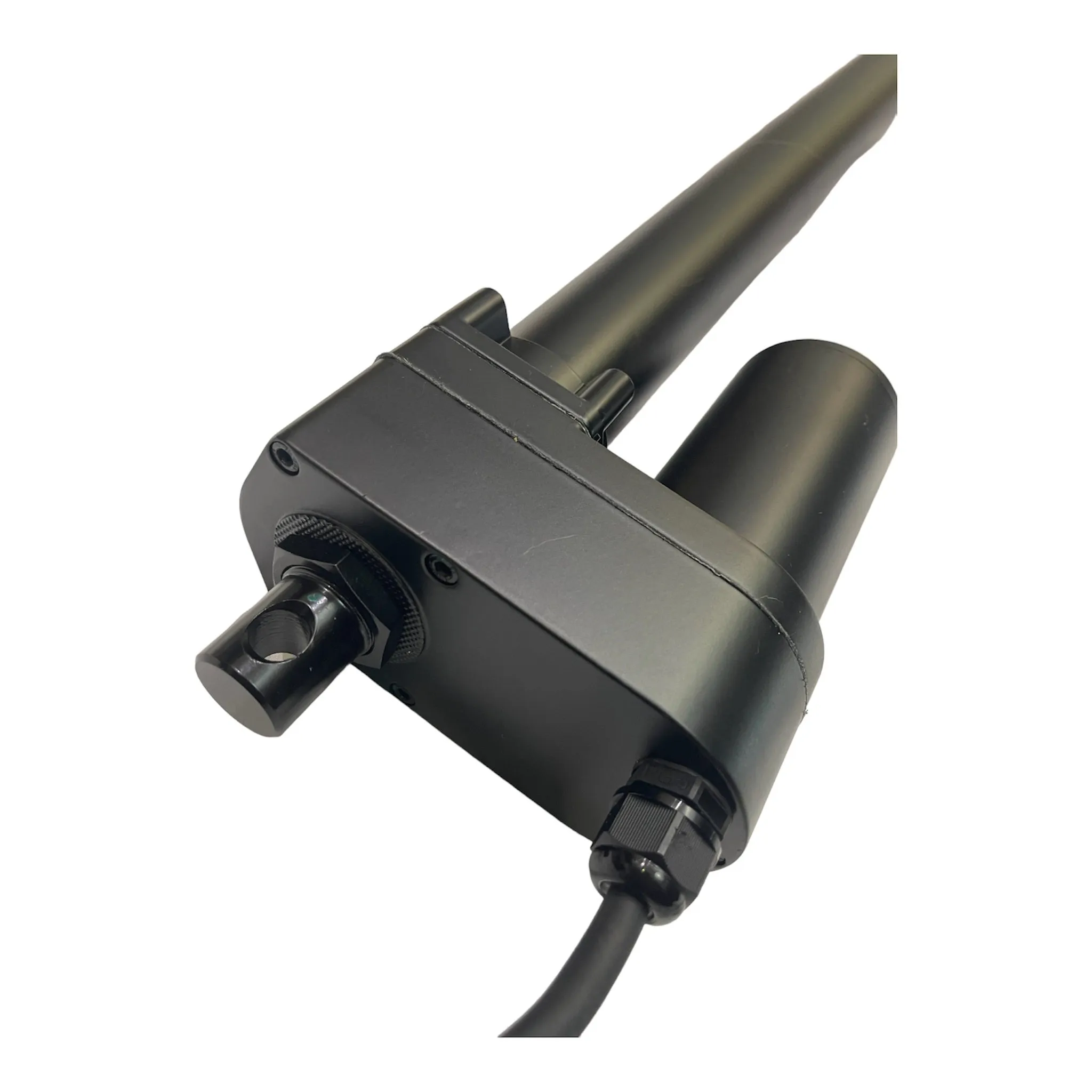

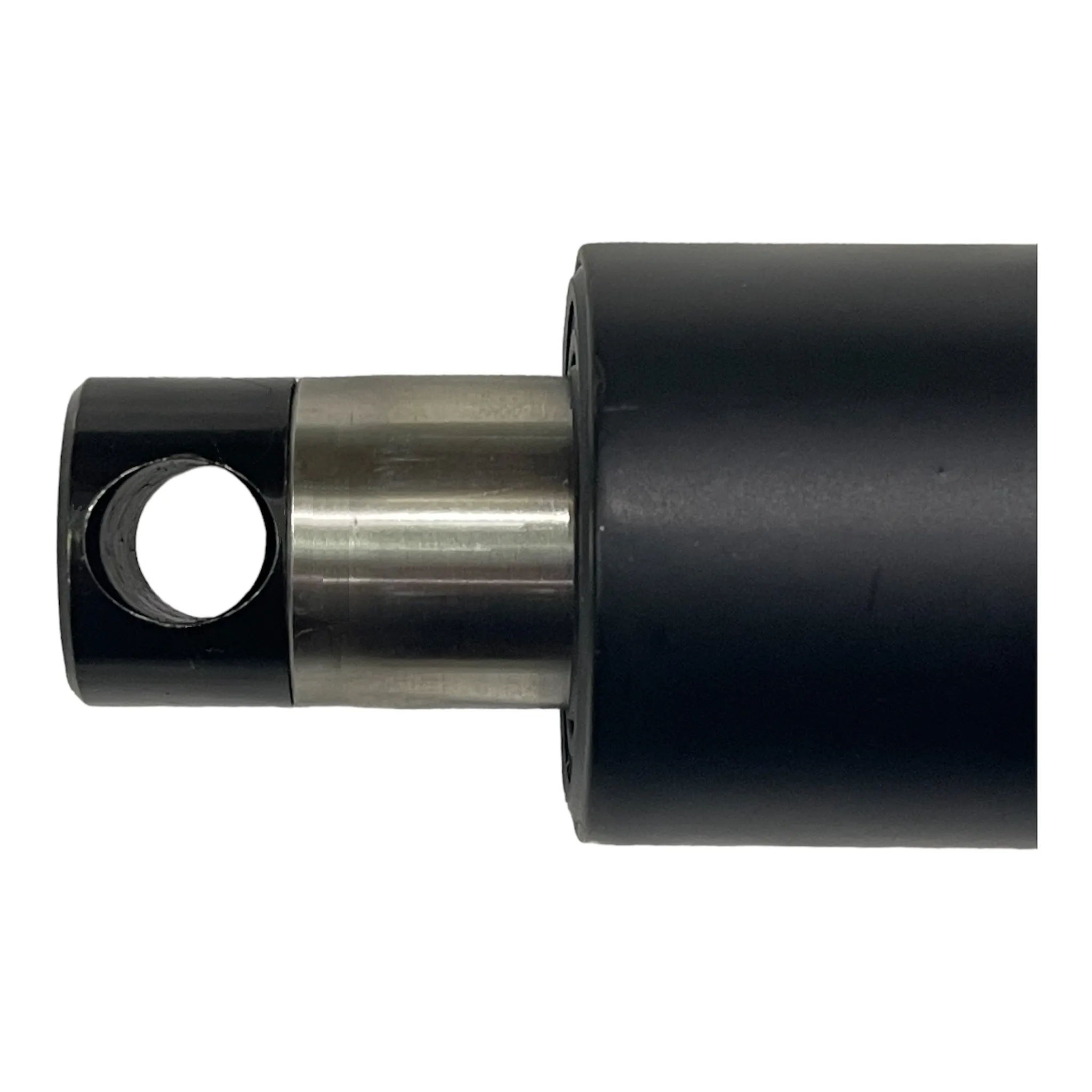

Our Power Max Actuator stands out with its thoughtful design features. Equipped with Limit switches for strokes up to 24 inches, this actuator offers precise control over its range of motion. As the stroke exceeds 30 inches, the intelligent Overload Clutch automatically disengages the motor upon reaching the end of the stroke, preventing any potential mishaps. Moreover, the Motor end Clevis can be effortlessly rotated by 90 degrees, while the moving end Rod shaft allows for seamless 360-degree rotation, providing enhanced flexibility and adaptability in various applications.

We take pride in offering a versatile lineup of the Power Max Actuator, available in eight distinct stroke lengths. Additionally, you can choose from two different force and speed models to tailor the actuator's performance to your specific requirements. To further cater to your needs, we offer both 12V and 24V options, providing flexibility and compatibility with a wide range of power systems.

Note: Our Industrial actuators have a high current draw; due to this they will underperform if used with the current FCB control boxes. To Synchronize these units, use a PLC and High Current DC Motor Driver.

The name "Power Max" perfectly encapsulates the essence of these remarkable actuators. Engineered for superior force capabilities, they excel in rugged applications where power and reliability are paramount. With a range of stroke options available as standard and the ability to accommodate custom orders for any stroke length, the Power Max Actuator represents the pinnacle of performance and versatility in the electric linear actuator market.

Features and Benefits

• Robust Design for Universal Heavy-Duty Applications: The Power Max Actuator offers a tough and reliable solution for a wide range of demanding applications.
• Steel Casing for Superior Strength: With its durable steel casing and fully sealed enclosure, the Power Max Actuator is built to withstand even the toughest Super Duty usage.
• Limit Switches: Internal limit switches automatically shut off the actuator at the end of the stroke, providing protection for your equipment on strokes up to 24".
• Built-In Clutch and End-of-Stroke Function: Prevent overloading with the built-in clutch system, and ensure precise control with the end-of-stroke function on actuators over 24".
• Versatile Standard Strokes: Choose from a range of standard stroke lengths, including 6", 10", 15", 20", and 24", all equipped with built-in clutch and limit switches.

• Extended Stroke Options: For longer strokes of 30", 35", and 40", the Power Max Actuator features a built-in clutch while excluding limit switches.
• Powerful Force Range: Delivering force options from 900 to 1500 lbs., the Power Max Actuator provides impressive power for demanding applications.
• Flexible Power Configurations: Choose between 12V or 24V DC power as standard, and customize other voltage options for your specific needs.
• Hall Sensor Feedback: The Power Max Actuator offers the flexibility of optional Hall sensor feedback, enhancing control and precision with three included wires.
• IP66 Rated and Maintenance-Free: With an IP66 rating, the Power Max Actuator ensures reliable performance in harsh environments while requiring minimal maintenance.
• Maintenance-Free Efficiency: The Power Max Actuator ensures hassle-free operation, freeing up your time for essential tasks.
• Accessories sold separately include:  -  -  -  -
• For help with wiring up a Linear Actuator to other devices such as remotes, controllers, multiple Actuators, etc. please use our

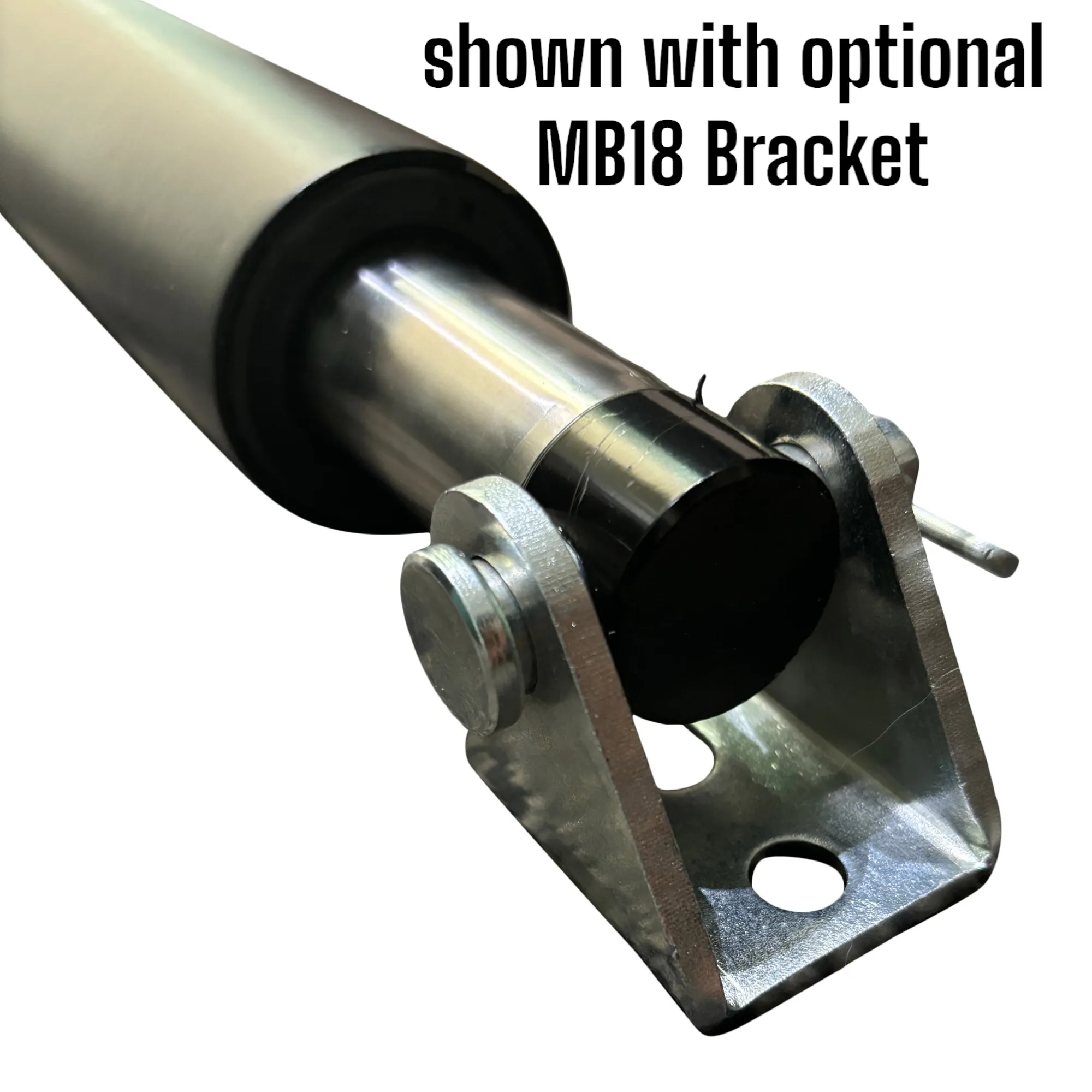

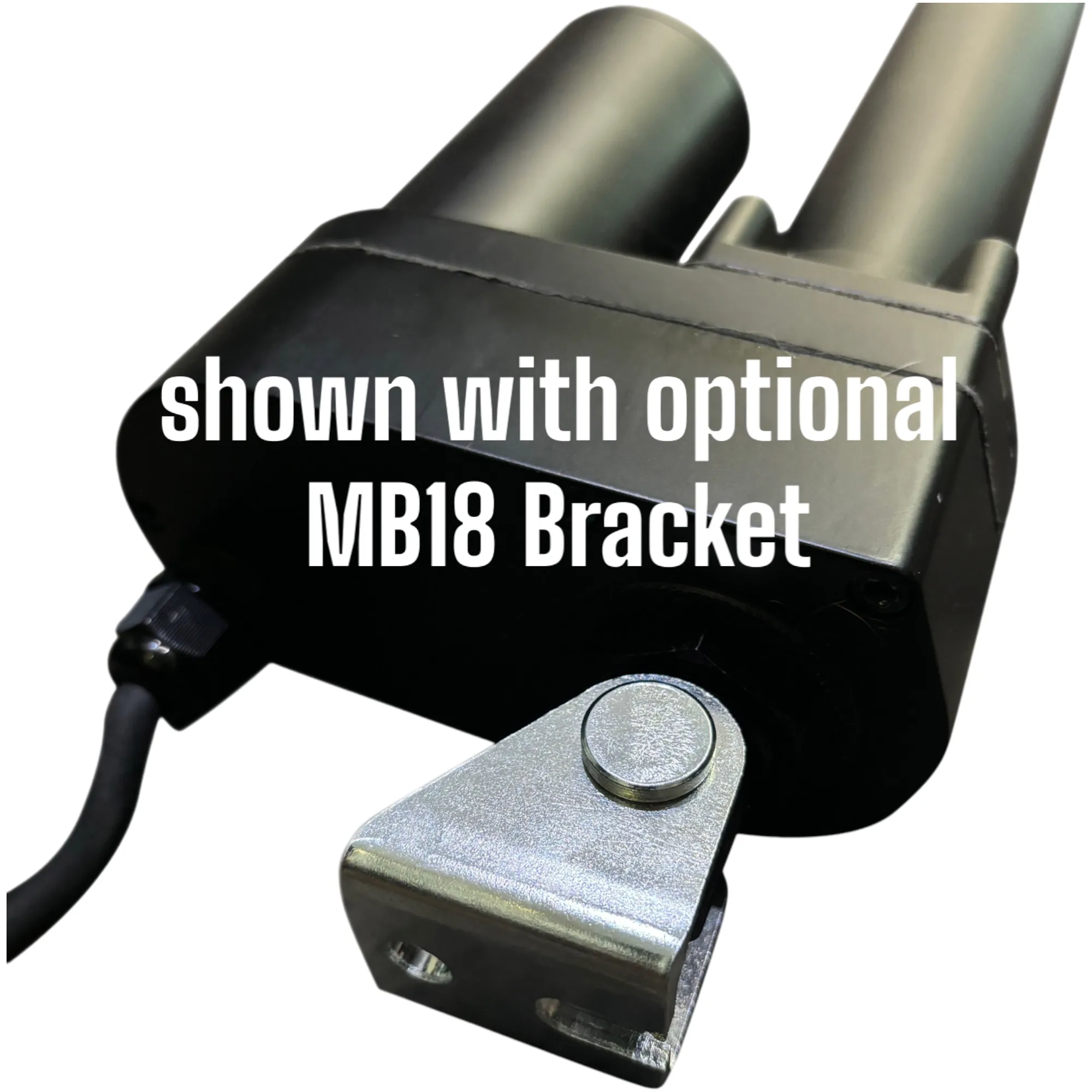

• Brackets:

Specifications

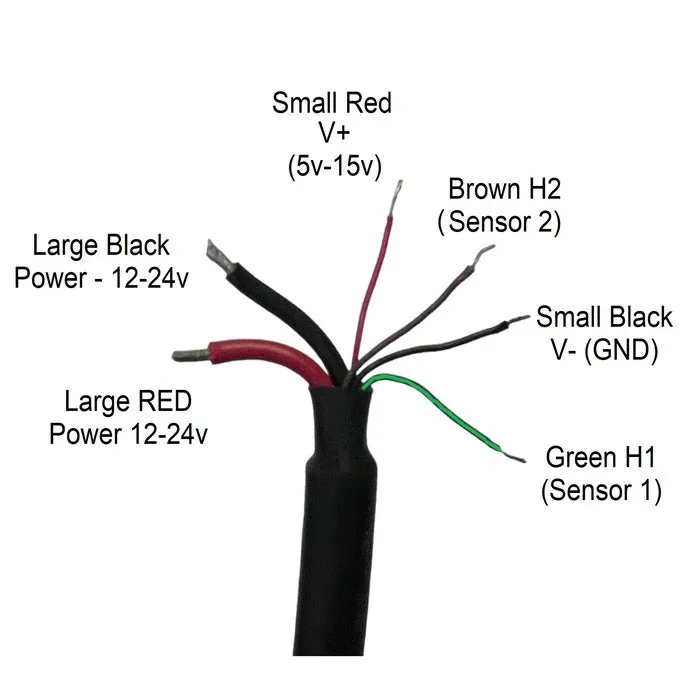

Wiring Diagram

Speed and Load Curves

Actuator Dimensions

Click on each image to get the PDF dimensions sheet. All SKU's are below.  First all 900-lbs force models then the 1500lbs models.

900lb Force
