Mipro ACT311BP Bodypack Lapel wireless mic package

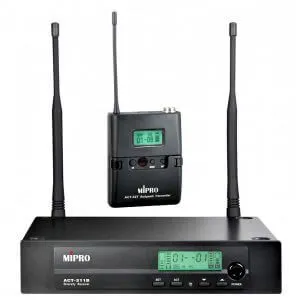

The ACT311-HH includes ACT311 receiver ACT30T bodypack transmitter and MU53 lapel mic

The ACT311 receiver features a single receiver channel for running 1 handheld or bodypack transmitter. It has plenty of switchable frequencies for futureproofing against Radio Spectrum changes.

EIA standard 1/2U metal receiver.
Receiver provides bias for booster where MIPRO antenna systems can be added for extended receiving range and stability.
Backlit LCD displays group, channel, frequency, RF level, antenna selection, AF level, battery level indicator, interference warning indicator, and panel lock indicator.
A lit green light indicates a working mode when receiver detects an incoming signal or buttons touched. Light dims automatically when receiver is idle for about 10 seconds.
Balanced XLR / unbalanced 1/4 " audio output jack, output level switch and DC input are on the rear panel. One mixed-output switch is available for dual-channel receivers.
High efficiency and low spurious PLL circuitry with Auto Scan functioin. Each receiver is presets with 11 groups, Groups 1~6, 7~10 have 8 &16 compatible channels respectively. Up to 8 channels in group 11 can be saved and recalled within 961 user-defined frequencies. A total of 112 preset channels per band.
World’s first ACT™ function provides precise and rapid frequency sync to the transmitters.
Advanced diversity technology for optimum reception range and reduces signal dropouts and the “PiloTone & NoiseLock” dual-squelch circuits prevent noise interference.
Adjustable ‘SQ’ for higher sensitivity to increase receiving distance and lower sensitivity to reduce interference.
Industry’s only RF interference warning indicator for ideal SQ level adjustment.
DC input socket accepts 12~15V power supply.

ACT30T bodypack transmitter features:

Miniature, compact design.
Top features mute switch, mini-XLR connector and antenna.
Backlit LCD displays various parameters and indicators.
Unique battery cover design provides easy access to operational controls and protects against accidental change of settings.
Connector for optional MJ-70 remote mute switch cable.
Low spurious PLL-synthesized technology enhances frequency stability and reliability. One-touch ACT syncs the transmitter and receiver frequency automatically.
Selectable impedance for microphone or guitar/line inputs.
4-pin mini XLR connector is compatible with all MIPRO lavalier, headworn microphones and instrument cable.
Highly efficient power consumption circuitry ensures long operating hours from 2 AA batteries.
Adjustable belt clip allows wearing transmitter in up or down position.
