Overview

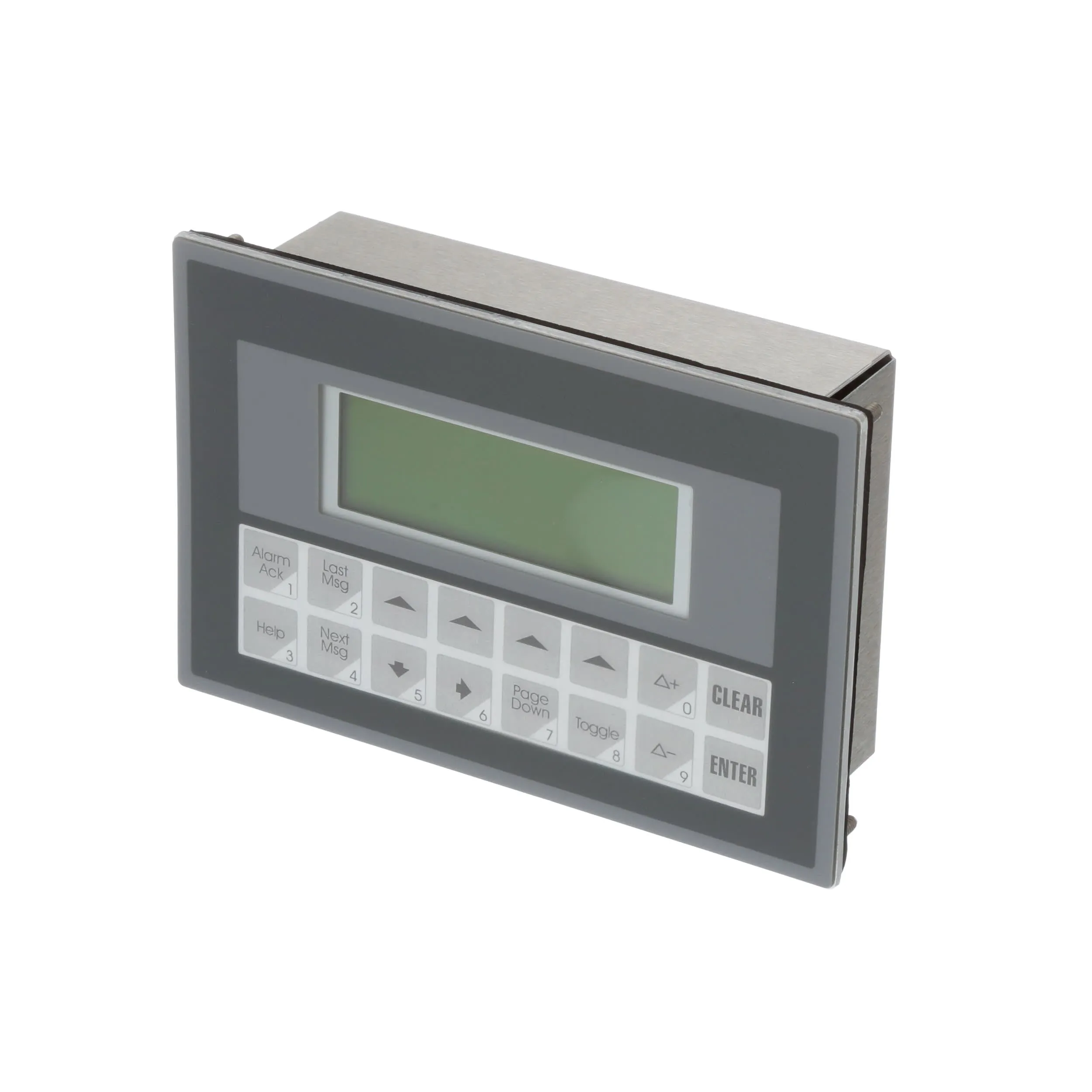

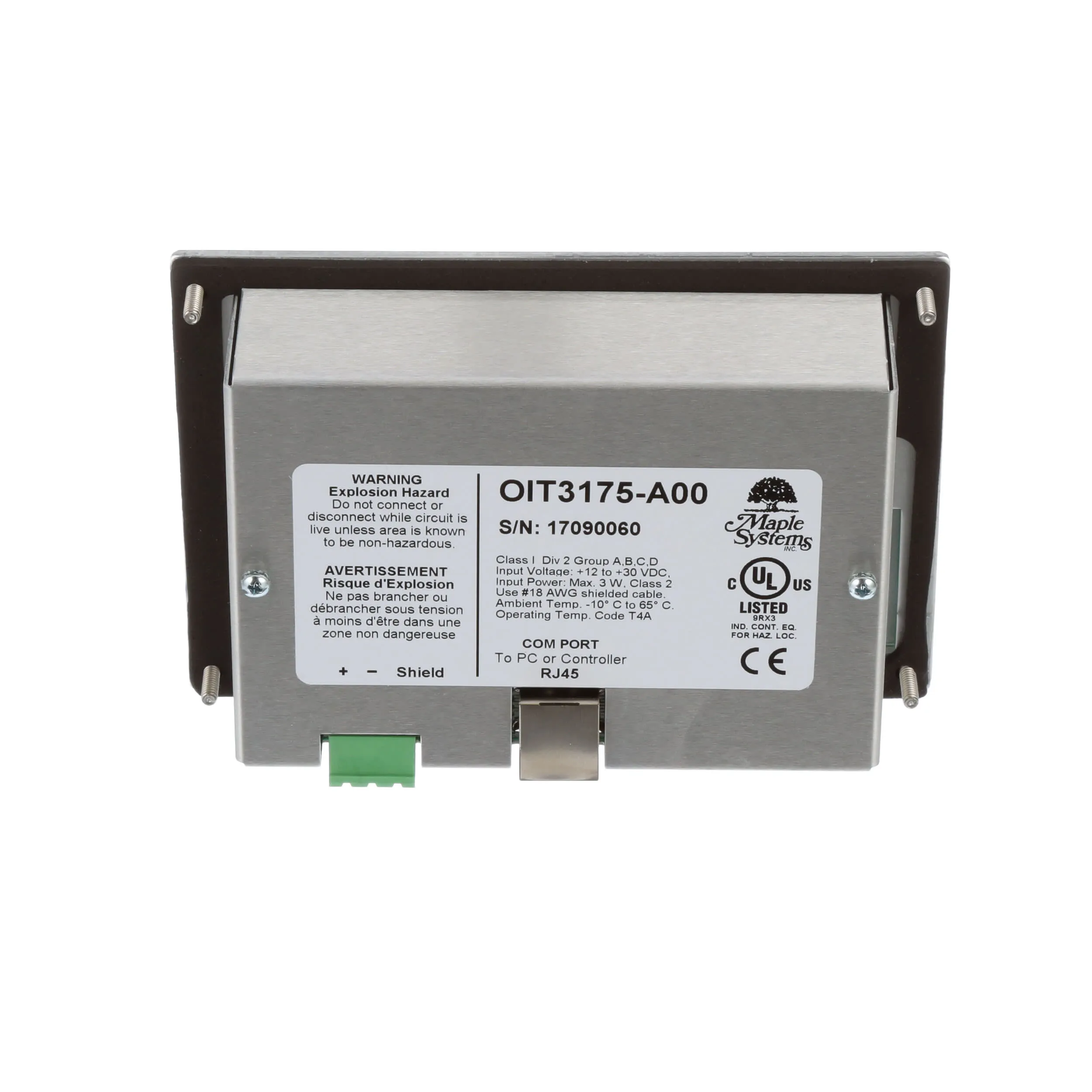

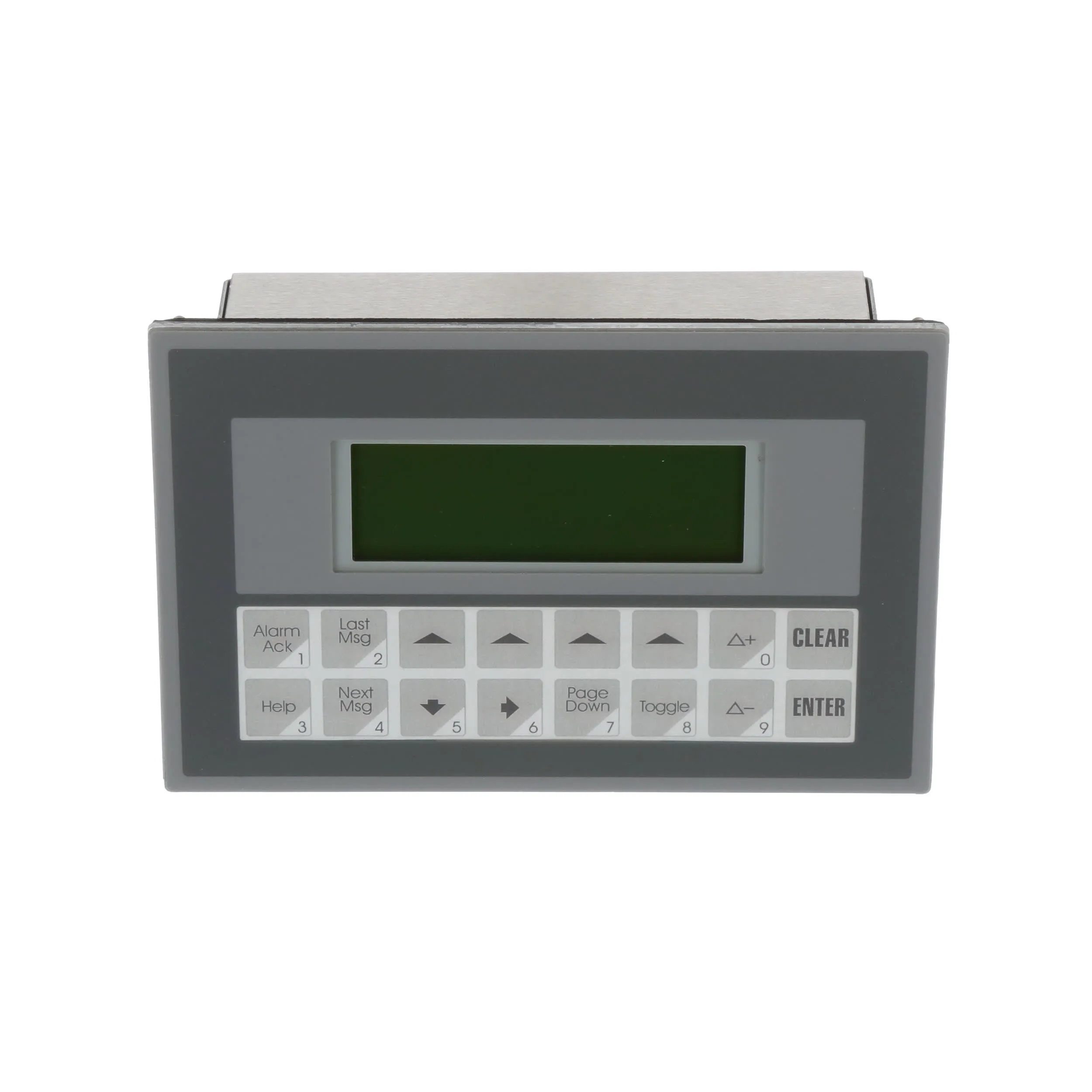

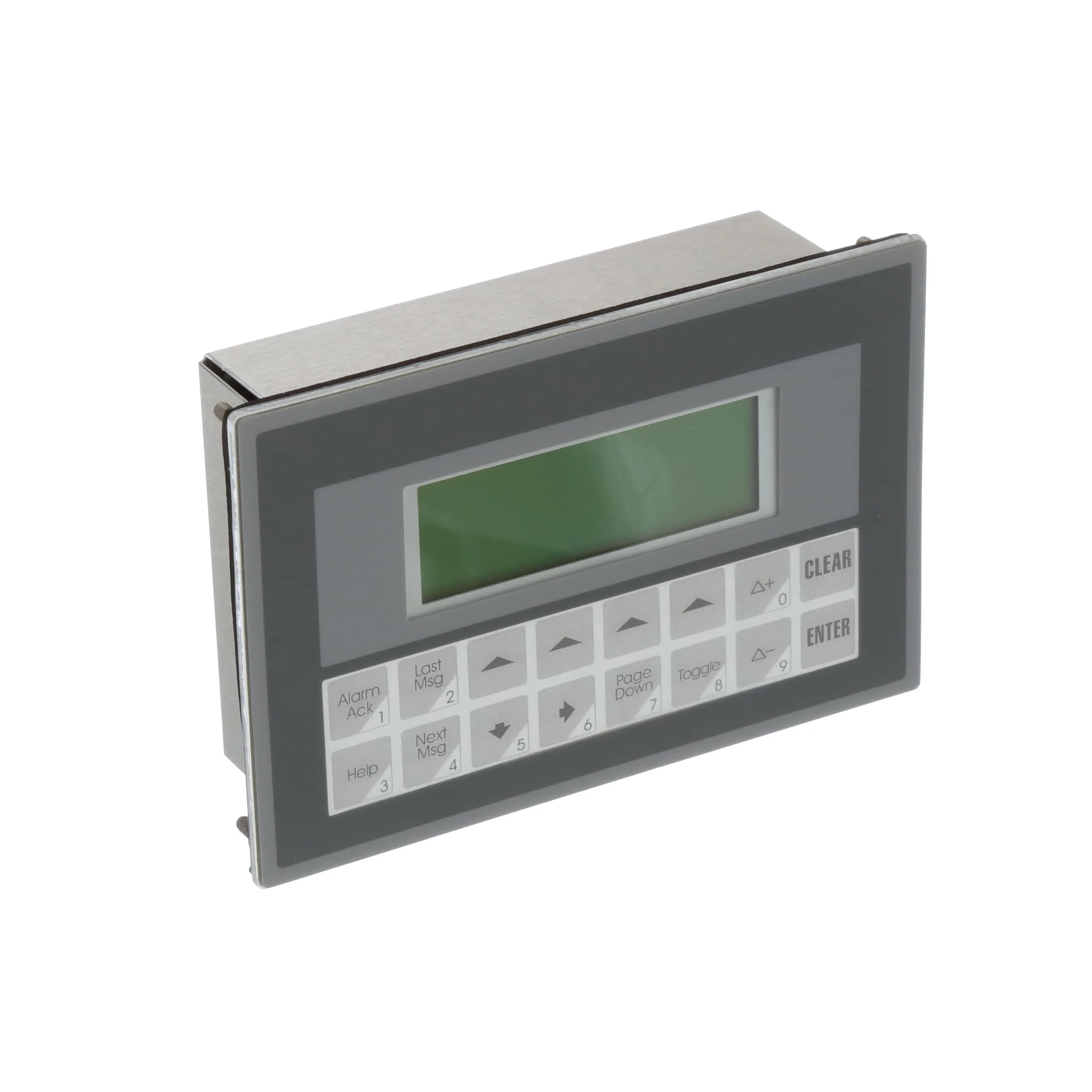

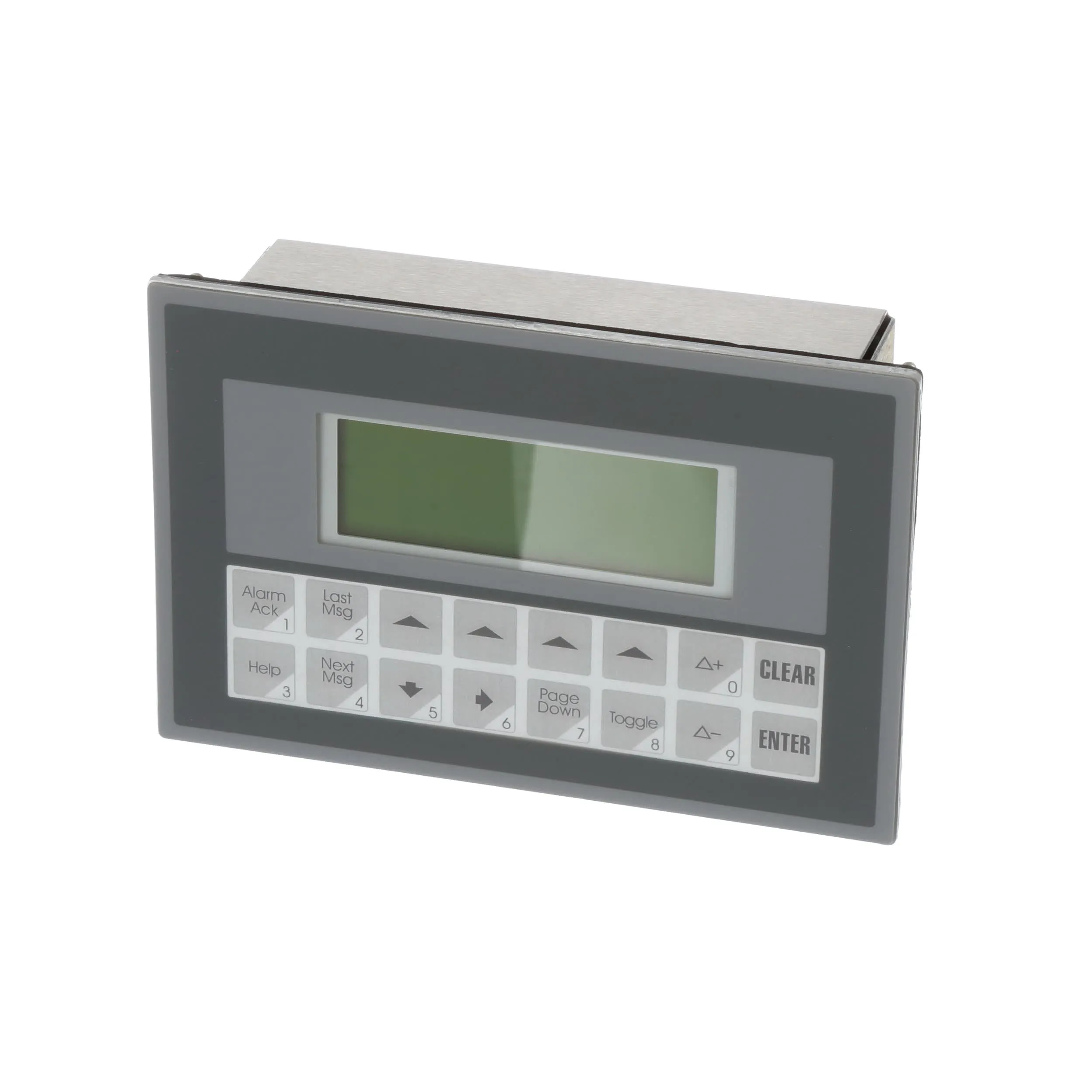

4 × 20 Backlit LCD Display | 16 User-Definable Function Keys | Custom Slide-In LegendThe OIT3175 has an alphanumeric backlit LCD display and a membrane-style keypad with custom slide-in legend. Each key is programmable, allowing you to define a unique keypad to match your application. A wide range of communications drivers are available with over 100 families of PLCs and motion controllers supported. Designed for harsh industrial environments, this OIT carries a Class I, Division 2 rating and operates under a wide temperature range.

Features:
4 line by 20 character LCD display
Membrane keypad with legendable inserts
Up to 16 user-definable keys
Class I, Division 2 certified
NEMA 4X, CE, UL certified
Extended temperature range (-10 to 65 °C)
Serial RS232/RS485 ports
Multiple PLC registers per screen
500 configurable screens
Chain screens together
Floating point
Linear scaling
Recipes and menus
