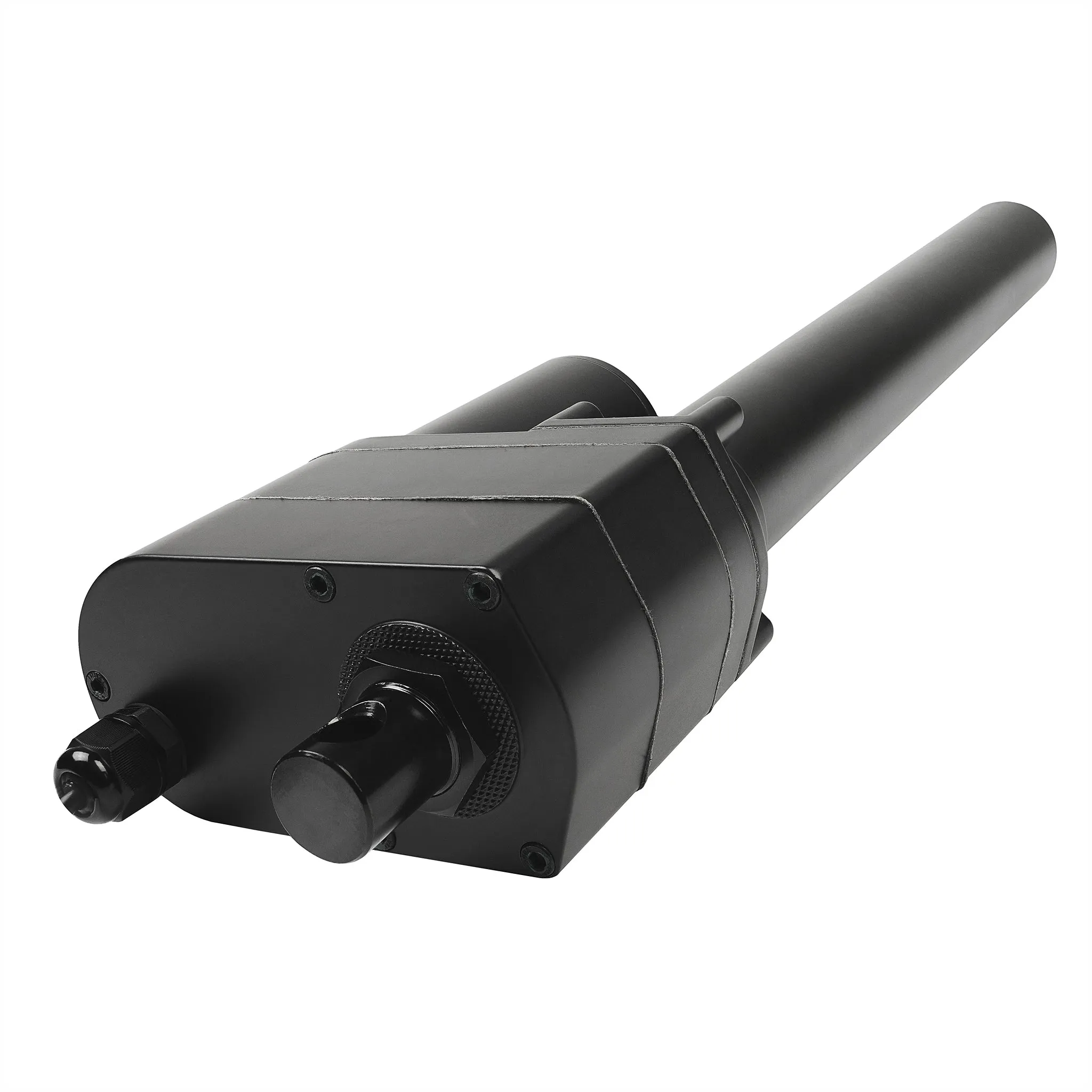

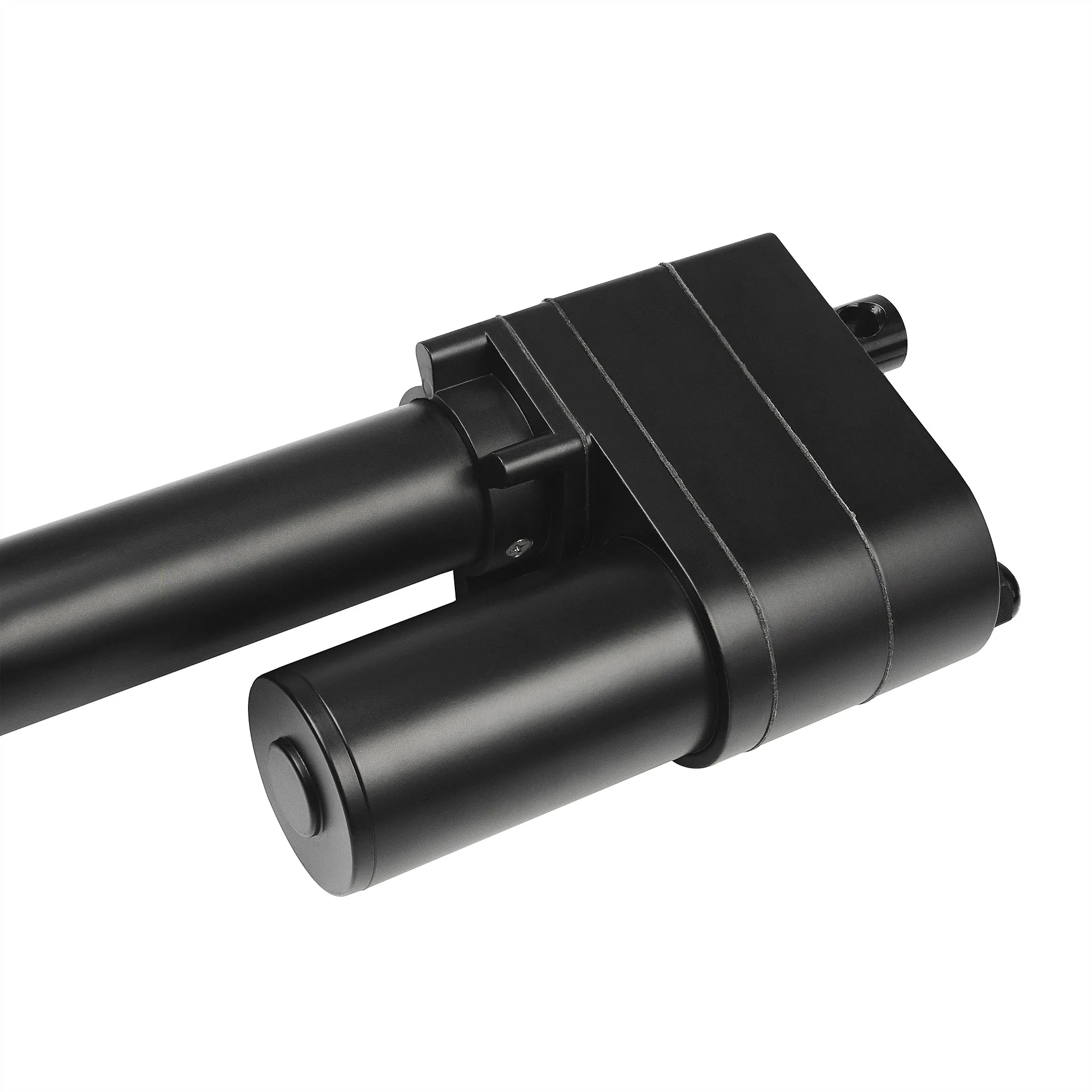

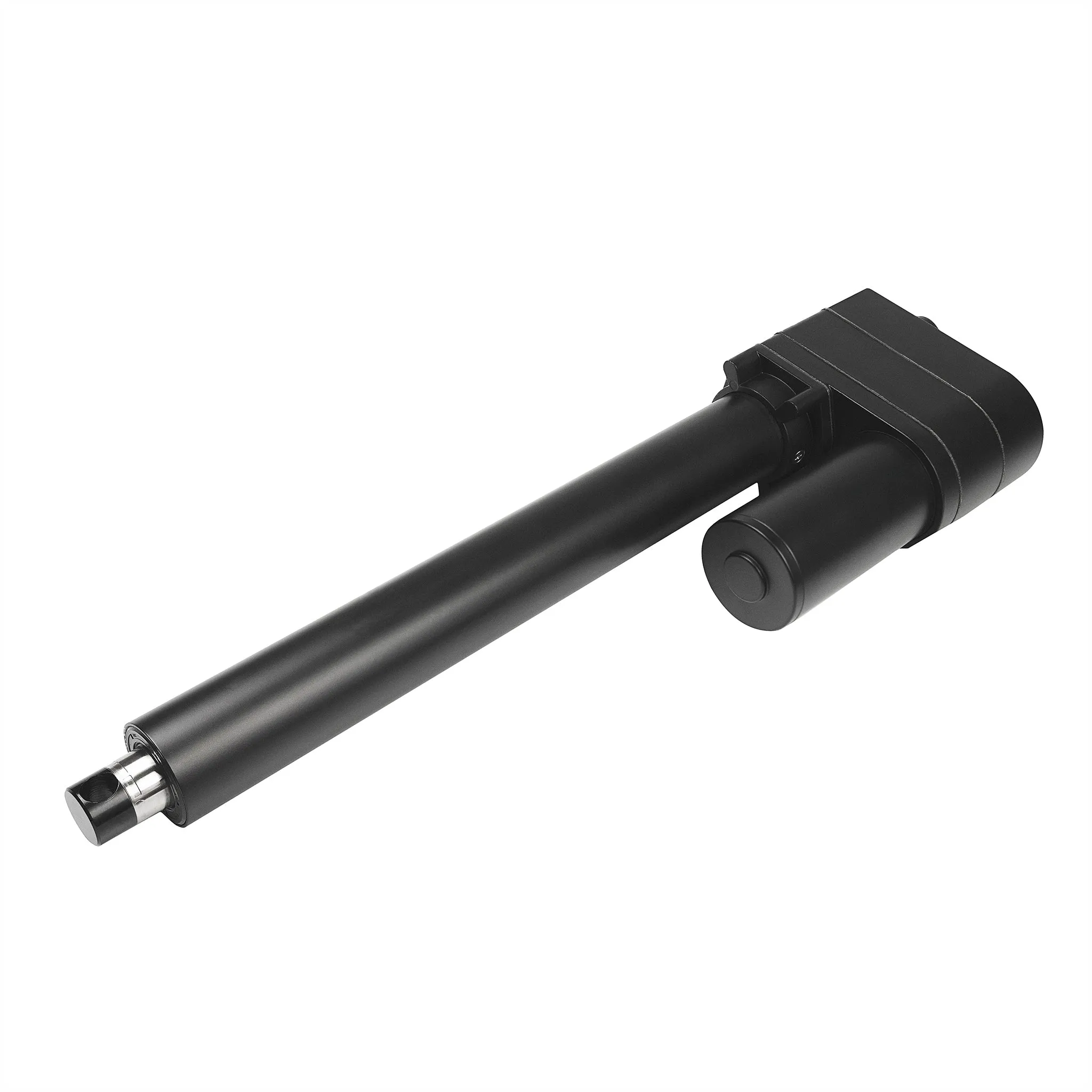

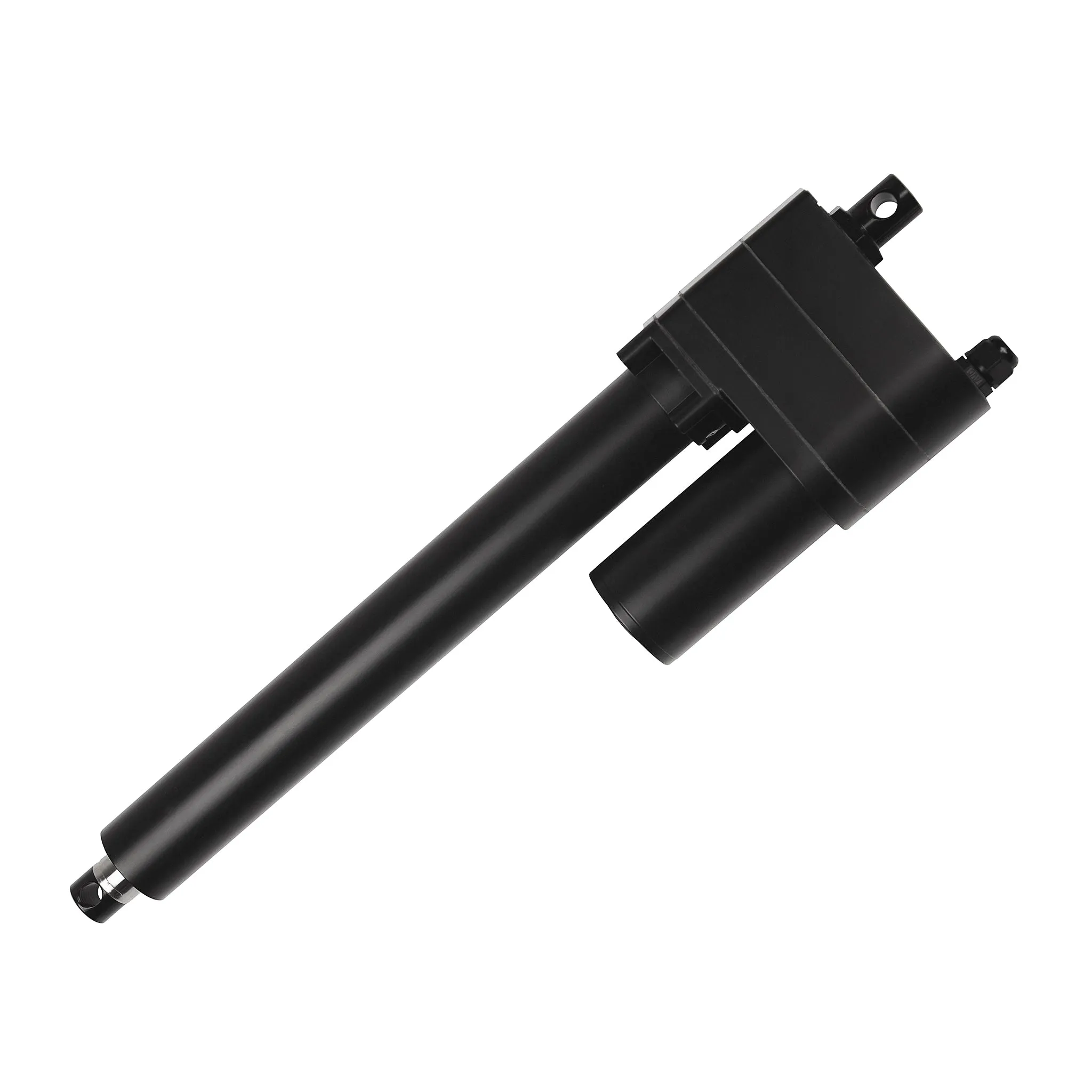

Name: Heavy Duty Linear Actuator - Optional Feedback
SKU: 652362

Product Details ＋

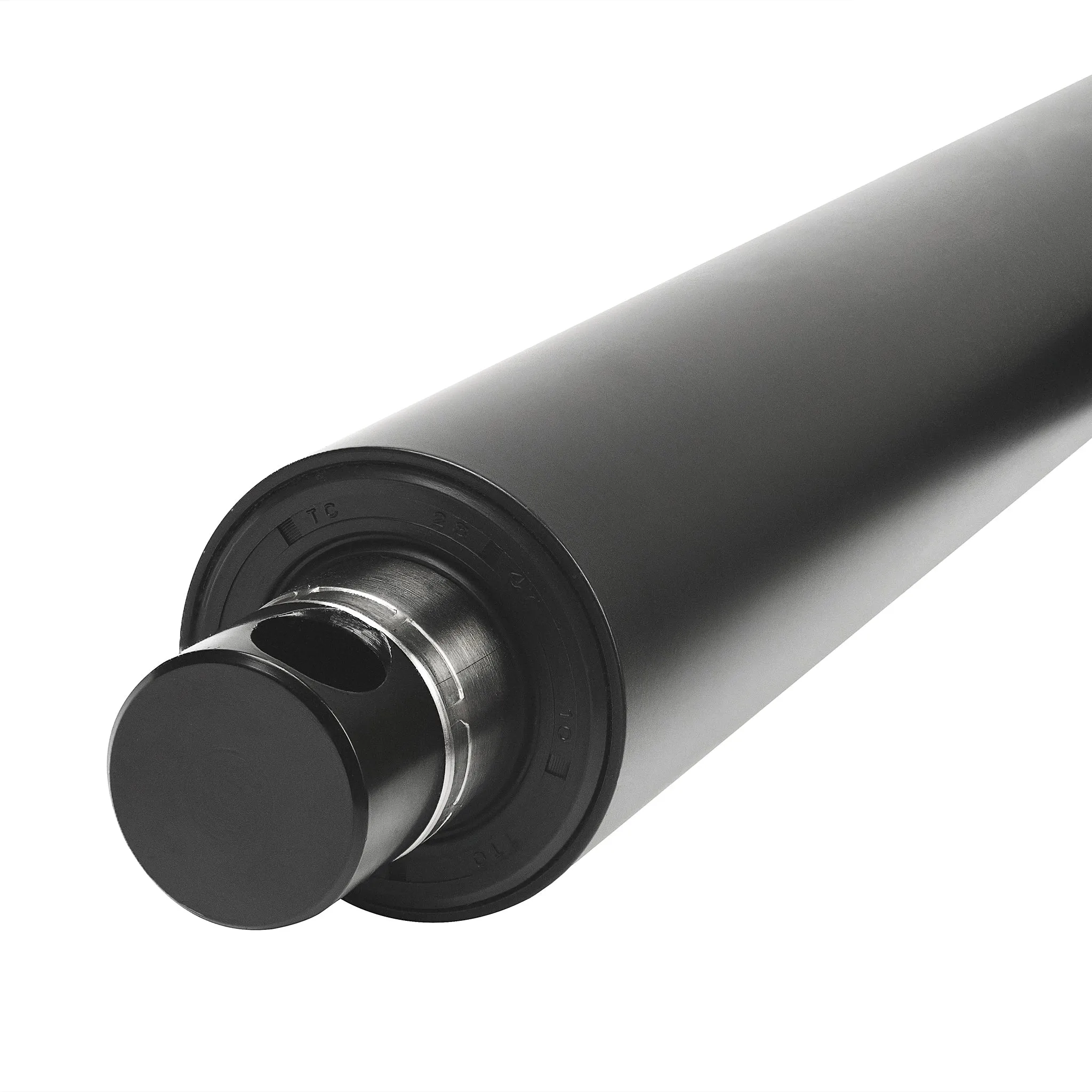

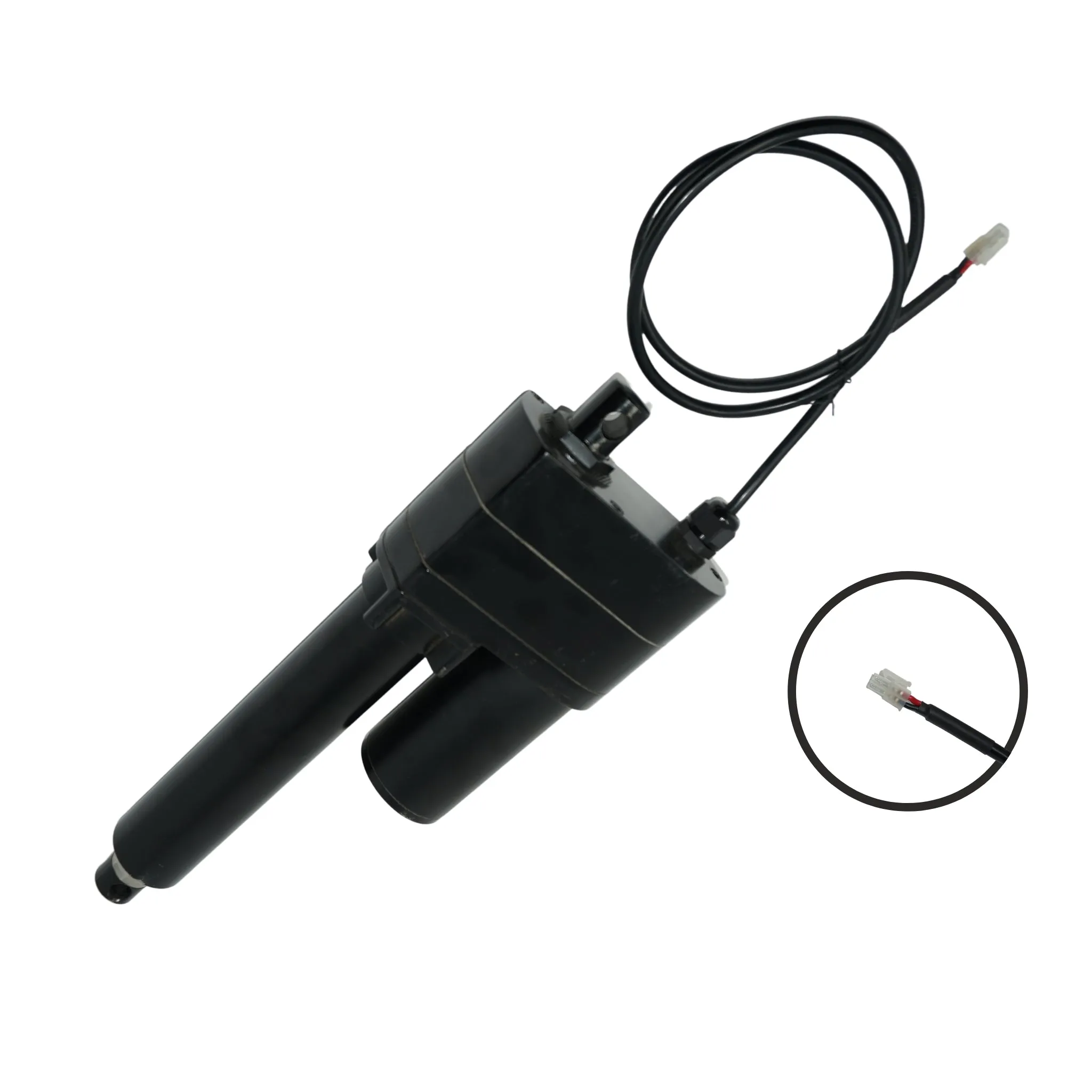

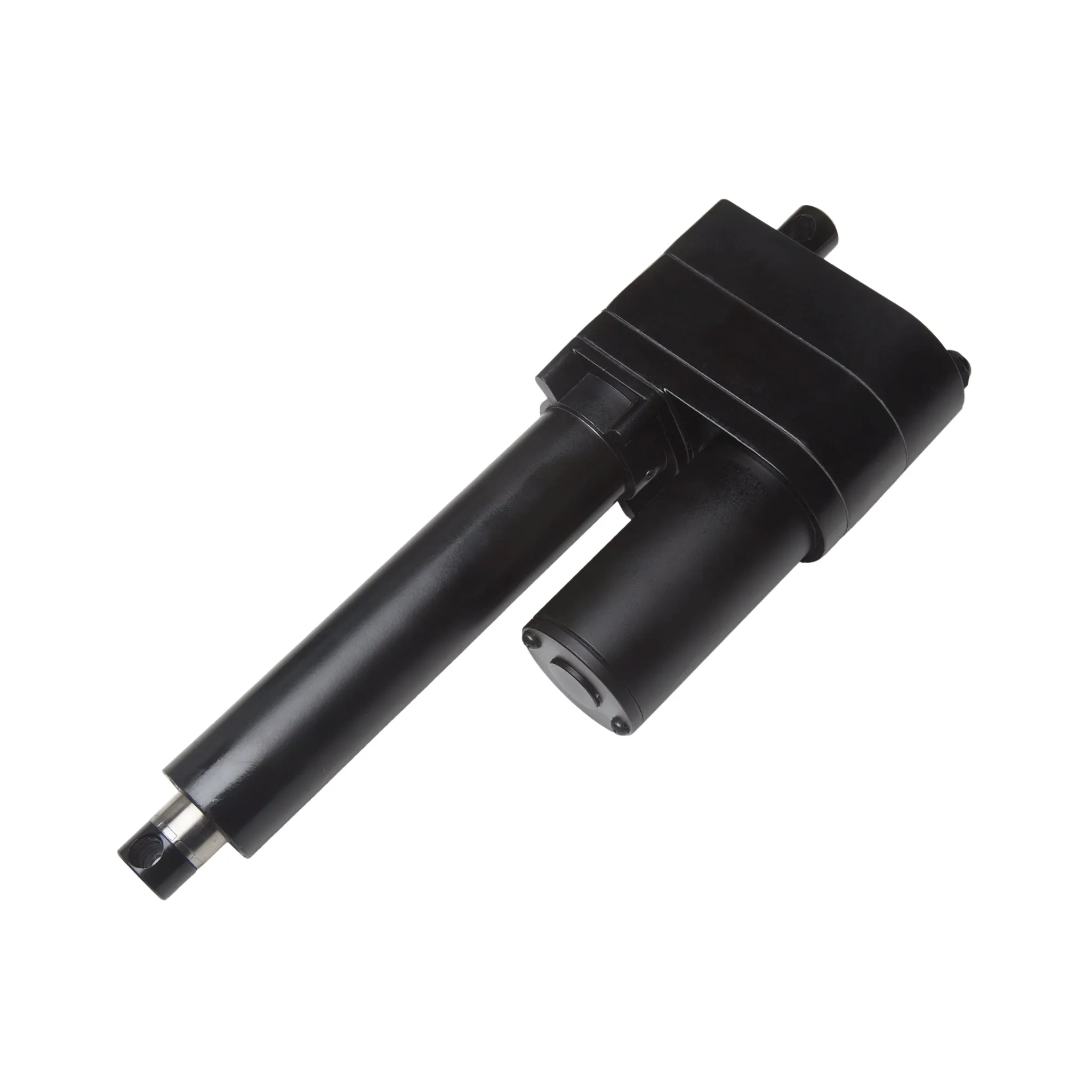

The PA-17 Heavy Duty Linear Actuator provides cost-effective high force capabilities. The stainless steel shaft accompanied by metal gears allows it to push and pull up to 2000 lbs, and hold up to 4000 lbs. The environmental protection rating provides a versatile unit able to withstand dust, water, and harsh environments. The heavy-duty actuator is the only unit in our line of products with adjustable limit switches. This feature allows the user full control over where to start and stop the actuator. We also have this model available with potentiometer feedback !

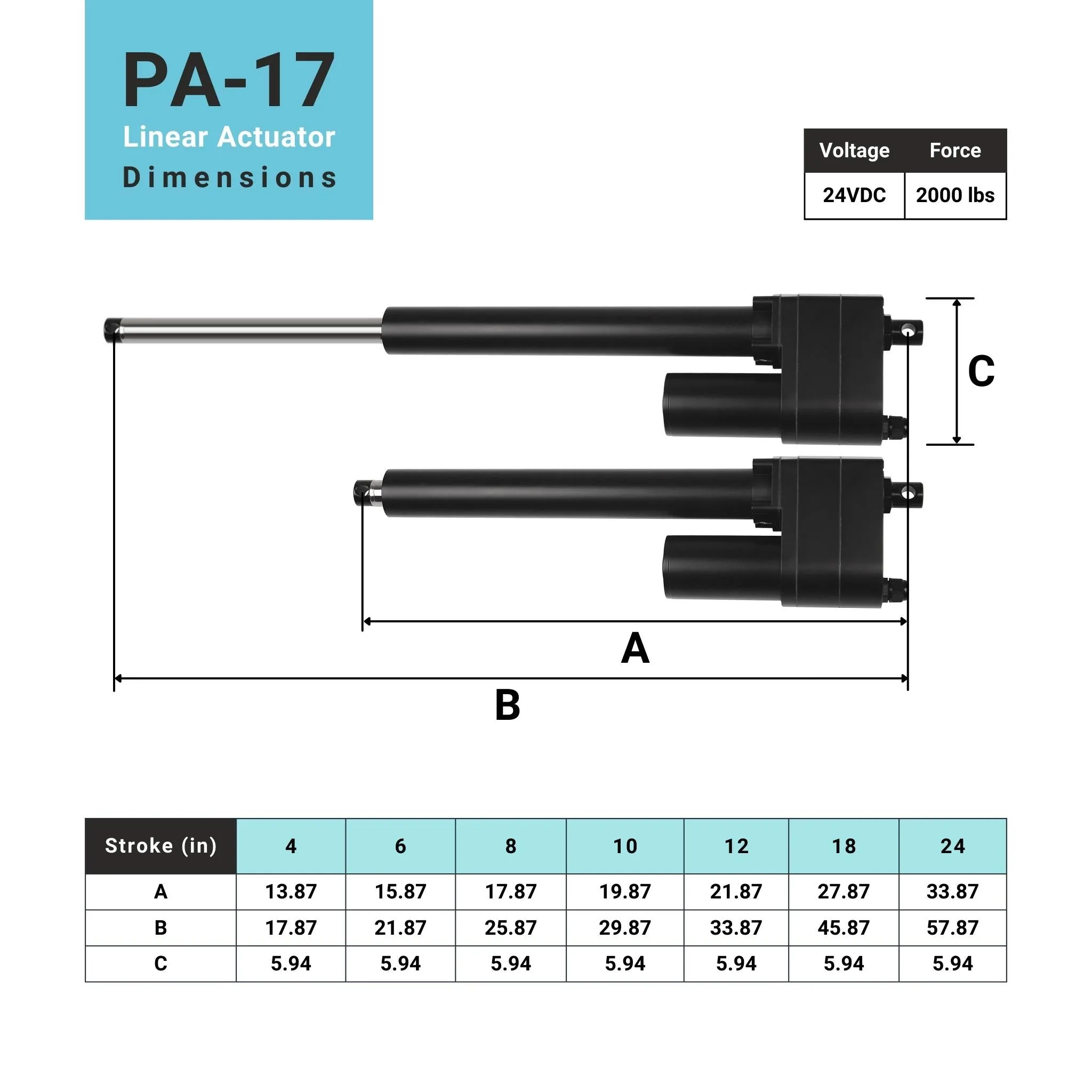

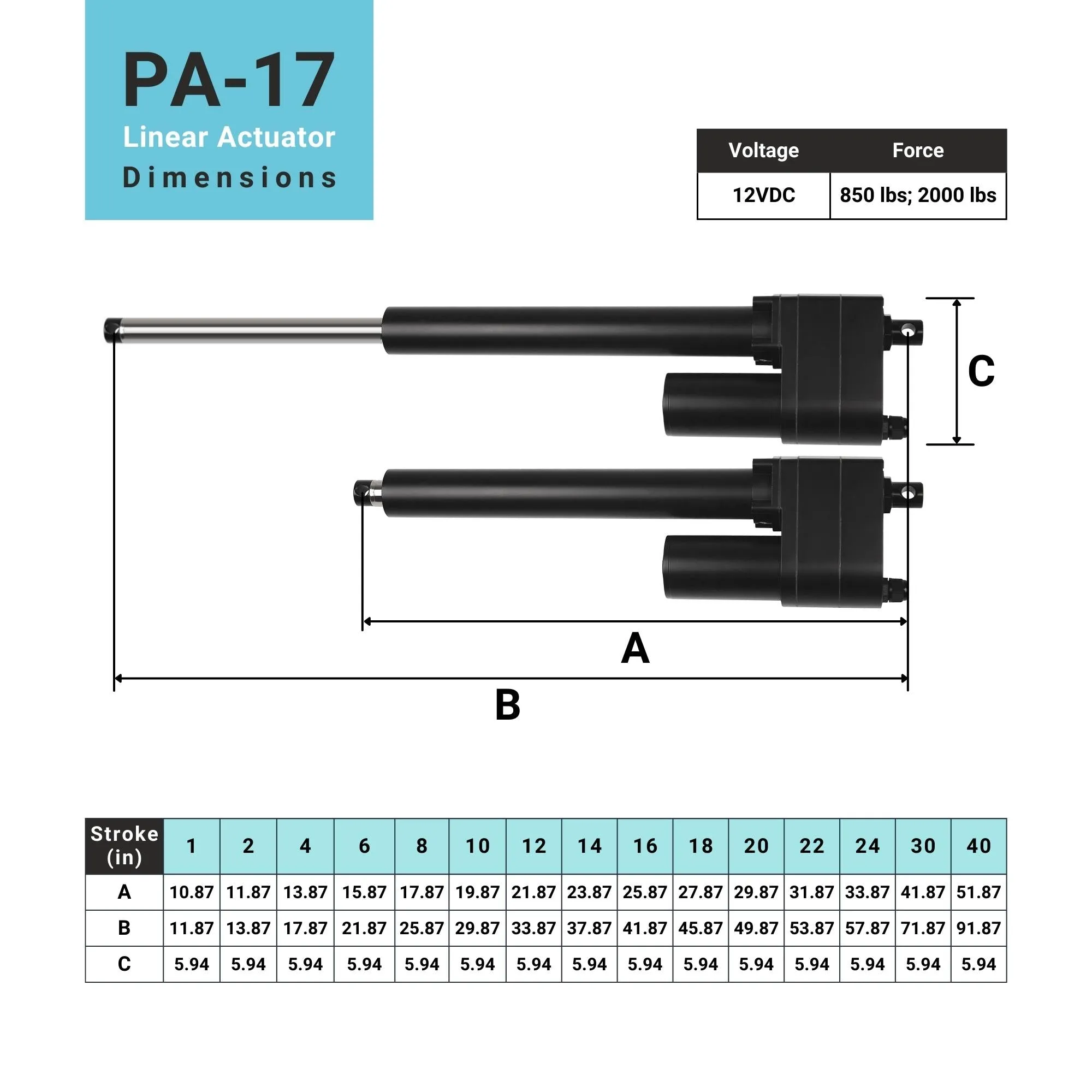

This unit can be found in industries such as , , , and . For a full list of specifications, customization options, and dimensional drawings, please see our PA-17 Data Sheet.

Note: limit switches are not included in stroke lengths longer than 24".

MOUNTING OPTIONS:

The bracket, designed for the Heavy Duty Linear Actuator, allows for a simple installation process. For more detailed information and specifications, please see our brackets product page.

CONTROL SYSTEMS:

The heavy-duty electric actuator is compatible with a variety of our controllers as long as they have a 20A rating. With each controller comes a wide range of control options useful for whatever project you have in mind, as well as a very simple wiring process. Take a look at our page for a full list of options. Due to the high current draw, relays and other components may be required for compatibility.

*Please note that the PA-17 is not rated for shock or pulse loads.
