| Housing |

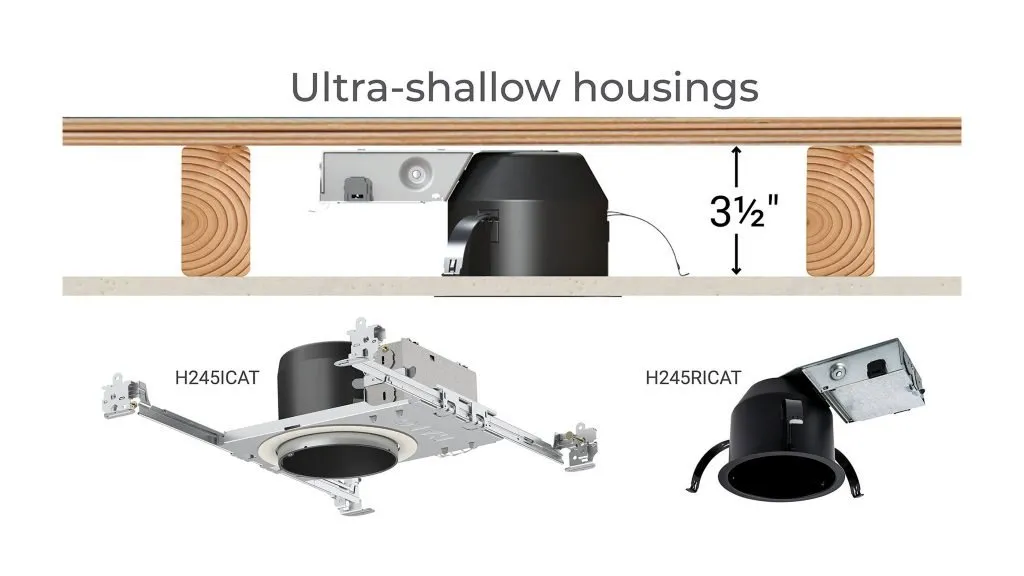

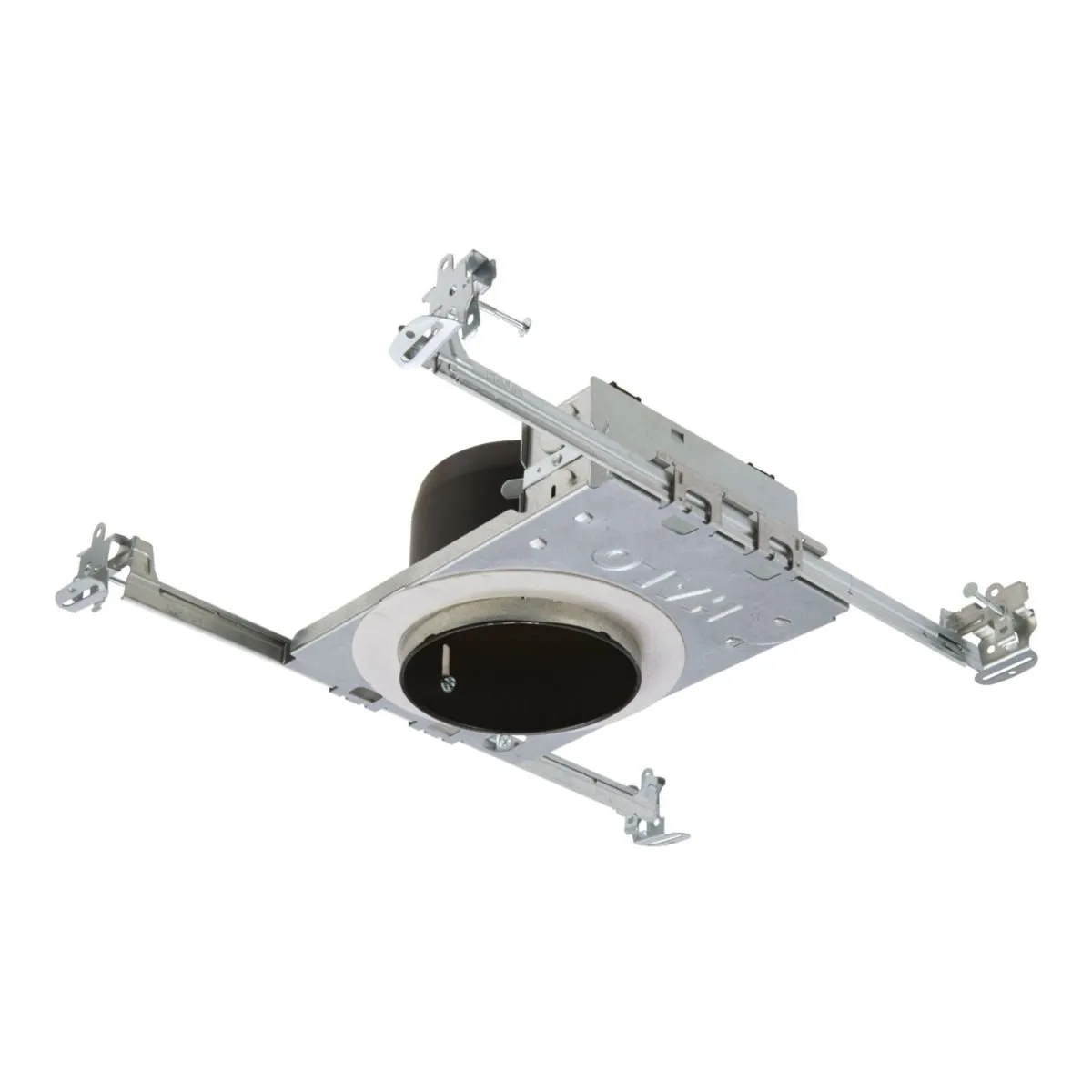

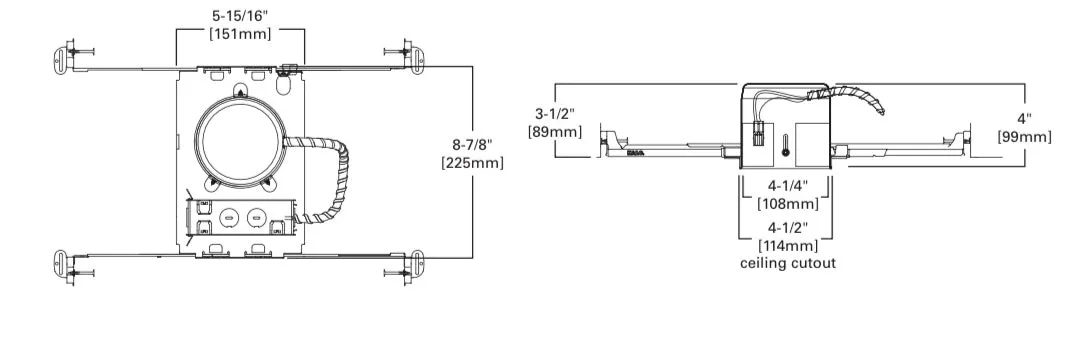

Single wall deep drawn aluminum housing painted matte black for a visually dark interior. Adjusts vertically to accommodate 1/2” to 1-1/4” thick ceilings and locks in position with (3) setscrews. V notches on plaster lip facilitate use of guide strings or laser lines for precise positioning. Integral gasket provides for airtight compliance. Shipped with overspray protector installed. Housing can be removed from below the ceiling for service or splice inspection. |
Plaster Frame
|
Compact galvanized steel plaster frame with integral bar hanger receivers. Regressed screw provide positive horizontal bar hanger locking from below the ceiling. Crimp points also provide for horizontal bar hanger locking. |
| Bar Hangers |

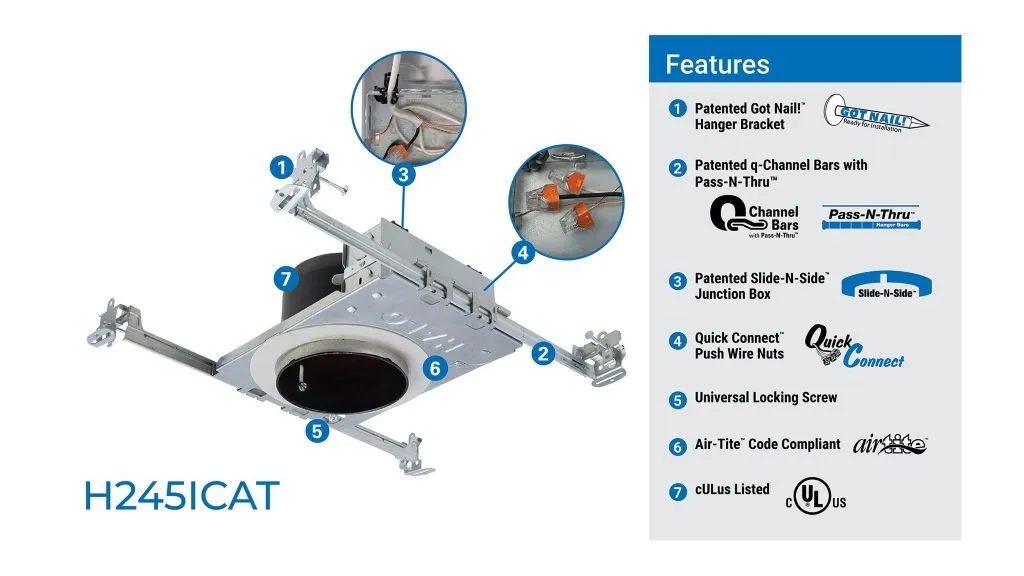

Captive preinstalled Got-Nail™ bar hangers support housing at any point along span. Pass-N-Thru™ feature adjust from 8” to 24” wide without removal. Score lines allow “tool-less” shortening for 12˝ joists. Captive nail penetrates standard and engineered lumber. Safety and guidance system prevents snagging, ensures smooth straight nail penetration and allows bar hangers to be easily removed and repositioned. Leveling flange aligns plaster frame with structure. Integral clip attaches directly to tee-bar |
Junction Box
|
Compact galvanized steel junction box with 15in3 internal volume. Listed for (10) #12 AWG 90˚ C splice conductors. (5) ½” conduit pry-outs positioned to allow straight conduit runs. (3) Slide-N-Side™ non-metallic (NM) wire traps allows wiring outside the box • Accepts 14-2, 14-3, 12-2, 12-3 U.S. and 14-2, 14-3, 12-2 Canadian NM cable. (3) 4-port push wire nuts with clear caps for quick and reliable mains voltage connections |
Connector
|
Two-conductor wire mount connector is rated for 120/277V and mates with Halo LT4, RL4, RA4, SLD, SMD and ML4 family of LED integrated trims. CAUTION: verify LED module input voltage is compatible with the input voltage of the housing. If uncertain, consult a qualified electrician |
