- For Presenters, Performers, Educators
- Bodypack Transmitter
- Headset Microphone
- 1/4" Plug-In Receiver for Mixer
- 16 Switchable Frequencies
- Transmitter: 8 Hours on AA Batteries
- Receiver: 2-Hour Battery USB Power
- Expandable to 15 Mic Channels/164' Range

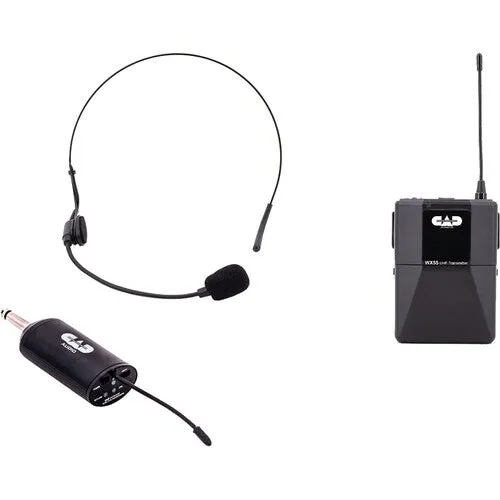

Quick and easy to set up, the CAD WX55 Digital Wireless Microphone System offers clear wireless digital audio for presenters, performers, and educators. The system includes a bodypack transmitter with a headset that's comfortable to wear and a plug-in receiver with QuickMic connection into your mixing board via an integrated 1/4" jack.
You can be ready to go in no time: just turn on the system and the transmitter scans 16 switchable frequencies to locate a clean RF channel that's free from interference. The transmitter automatically pairs with the receiver, which simply plugs into an open channel on your audio mixer. Operate the bodypack up to 8 hours on two AA batteries and the receiver up to 2 hours on its built-in rechargeable battery. The receiver can also operate for numerous hours on a USB power pack or indefinitely, if you have access to AC.
- Clear digital audio
- Headset microphone

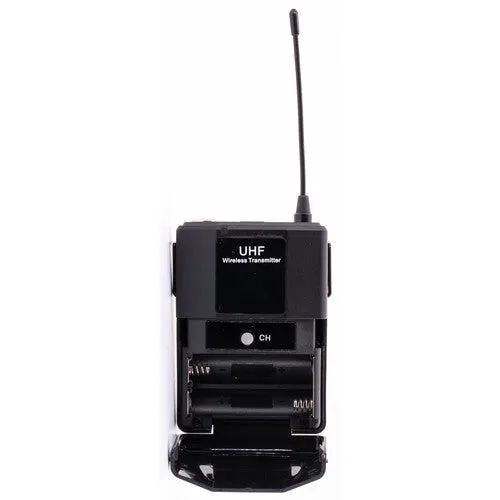

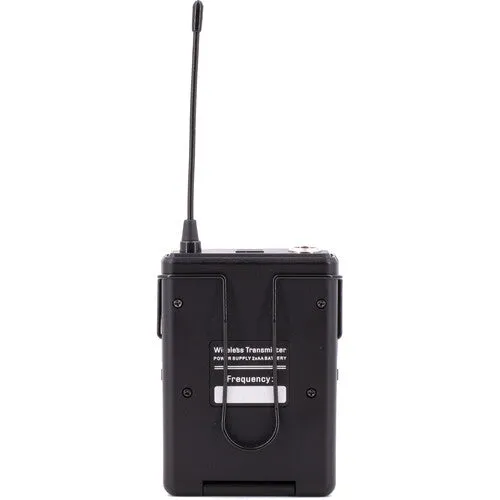

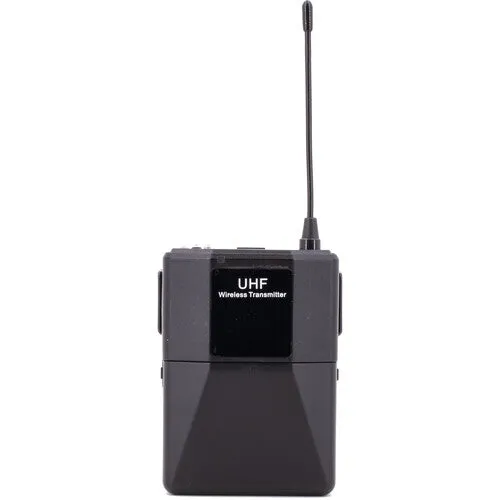

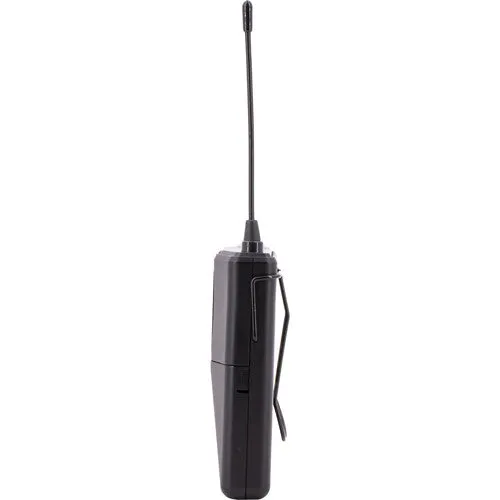

- Bodypack transmitter

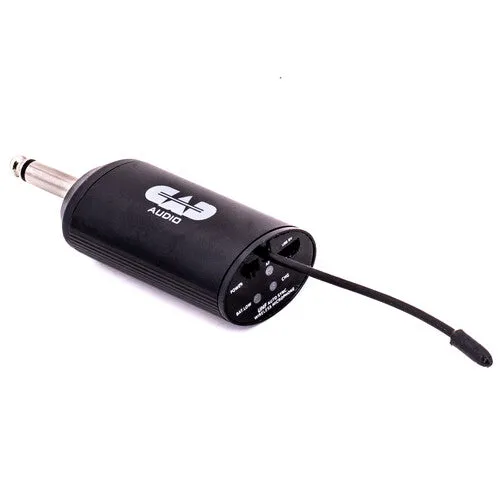

- Plug-in receiver with 1/4" jack for connection to an audio mixer
- Frequency-agile design with 16 switchable frequencies
- Use up to 15 systems at the same time
- Up to 164' range between transmitter and receiver (line of sight)
- Transmitter and receiver feature low-battery indicators
- Transmitter operates up to 8 hours on two AA batteries
- Receiver operates up to 2 hours on fully charged, built-in rechargeable battery
- Receiver can also operate indefinitely via USB power (USB cable included)
CAD WX55 Specs
| Wireless Technology | Digital UHF |
| Number of RF Channel Frequencies | 16 |
| Included Transmitters | 1 x Bodypack |
| Diversity | Non-Diversity |
| RF Frequency Band | 500 to 599 MHz |
| RF Channel Scanning | Auto-Scan |
| Max Operating Range | 164' / 50 m (Line of Sight) |
| Max Transmitters per Band | 15 |
| Built-In Recorder | No |
| Control App Support | No |
| Encryption | None |
| Modulation | QPSK |
| Receiver Type | Plug-In |
| Number of Audio Channels | 1 |
| Audio I/O | 1 x 1/4" TS Male Unbalanced Output |
| Frequency Response | 20 Hz to 16 kHz |
| Network I/O | None |
| Word Clock I/O | None |
| USB/Lightning Connectivity | Micro-USB Female |
| Power Requirements | Battery |
| Battery Type | 1 x Built-In Rechargeable |
| Approx. Battery Life | 2 Hours |
| DC Input Power | 5 VDC |
| Display & Indicators | 3 x LED (Battery Status, RF Level, Recharging) |
| Transmitter Type | Bodypack |
| RF Output Power | 10 mW |
| Audio I/O | 1 x TA4/Mini XLR 4-Pin Male Input |
| Auto-Level Control | No |
| Frequency Response | 20 Hz to 16 kHz |
| Sync Method | Proprietary |
| Power Requirements | Battery |
| Battery Type | 2 x AA |
| Approx. Battery Life | 8 Hours |
| Display & Indicators | 1 x LED (Battery Status) |
| Microphone Type | Headset |
| Sound Field | Mono |
| Outputs | 1 x TA4/Mini XLR 4-Pin Female |
| Capacity | Not Specified by Manufacturer |
| Package Weight | 0.585 lb |
| Box Dimensions (LxWxH) | 9.2 x 7 x 2.1" |
