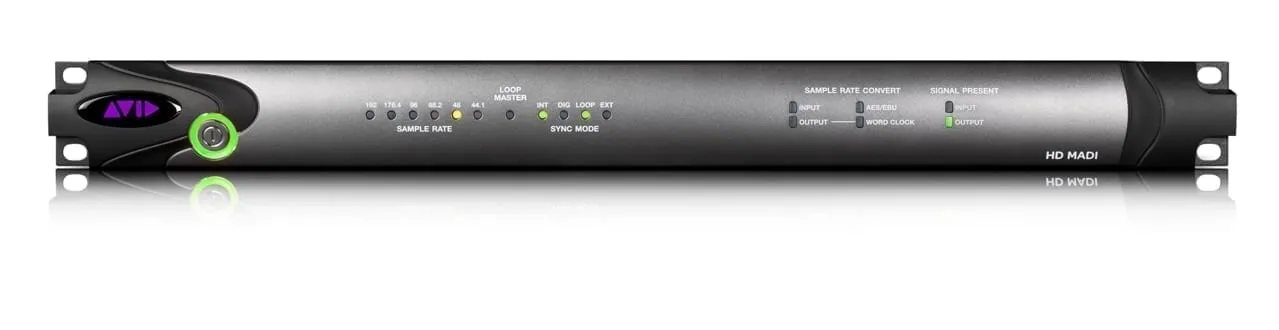

The next generation of Pro Tools | HD is here! The HD MADI from Avid gives you 64 channels of MADI connectivity. Boasting bi-directional sample rate conversion, the HD MADI makes sure your ICON or Pro Tools | HD rig can slide into any MADI environment, at any sample rate, and hit the ground running. Since you have 64 channels of MADI I/O available on all inputs and outputs, you'll find the HD MADI to be a very useful addition to any Pro Tools | HD studio. And the inclusion of both coaxial and optical I/O makes the HD MADI an easy fit.

Specifications

• 64 channel MADI interface
• Coax and optical connectors
• Cable lengths >1 mile with optical I/O
• Bi-directional sample rate conversion for input and output
• Easy integration into complex mixed sample rate environments
• Supports Varispeed mode (56 channels)
• Send and receive up to 64 audio streams between Pro Tools | HD and other MADI devices
• Maintain maximum audio fidelity, with up to 24-bit/192kHz sample rate support
• Gain connection and routing flexibility through optical and coaxial connections: 2 MADI inputs (optical and coaxial), 2 MADI outputs (simultaneous optical and coaxial)
• Built-in SRC on all I/O channels
• Completely integrates with Pro Tools | HD for full input, output, and routing control
• Sync to an external clock through dedicated BNC Word Clock and XLR AES/EBU connections when using SRC on output
• Keep things in sync with versatile clock support, including Internal, Loop Sync, Word Clock, AES/EBU, and MADI
• Gain better device compatibility with 64-channel (non-Varispeed) and 56-channel (Varispeed) support (at 48kHz)
• Integrate Pro Tools | HD with MADI-equipped VENUE live sound systems for recording and Virtual Soundcheck
• Verify and troubleshoot signals through status indicators and global I/O signal LEDs
• Compact 1U rackmountable design overcomes space limitations
• Connects to Pro Tools | HD through 2 DigiLink Mini connections (32 audio channels each; cables and adapters included)
