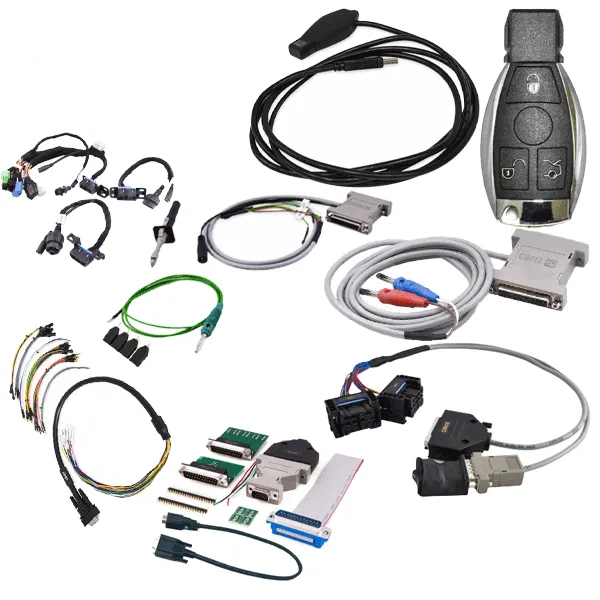

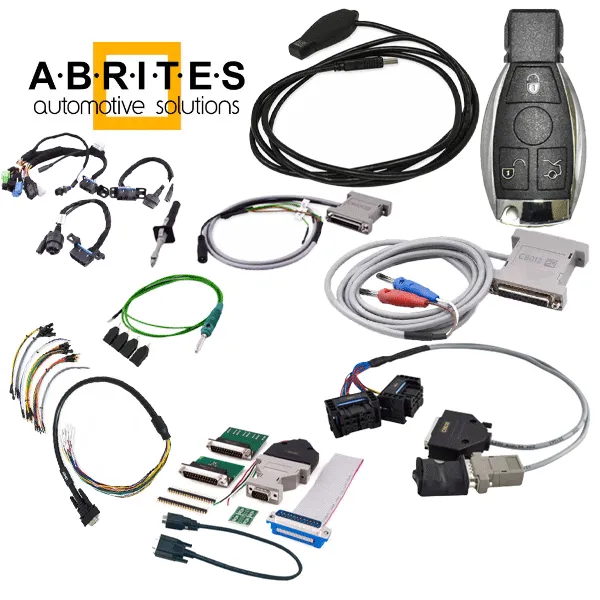

This is a programming kit that includes the following Abrites tools:

• ZN151
• SET088
• CB403
• ZN082

:

The new generation Abrites PROTAG Programmer is the latest upgrade to our powerful key programming tool! The ZN003 contains the full functionality of the ZN002 and expands its capabilities. With the PROTAG you can perform operations with keys and transponders, used in the latest authentication systems and immobilizers.

The ZN003 is durable and ergonomically shaped to provide additional ease of usage and is, equipped with 3 slots for different types of transponders. One of the slots is specially developed for the Mercedes-Benz truck keys. The design is optimized to eliminate transponder positioning errors and maximize efficiency. PROTAG is ready to program all keys and transponders produced by Abrites, as well as a vast variety of OEM ones. It is the ultimate key programming tool for the professional locksmith.

ZN151:

ABRITES Distribution Box Set (ZN151) is an assisting tool, designed to work with the AVDI interface and ABRITES diagnostic software for reading/writing electronic control module flashes by direct connection and boot mode. The Distribution Box is convenient for working both on the bench and in the vehicle. It can be used to connect to CAN and K-Line, as well as provide ground and power (12V - 24V) from an external power supply. ZN151 has a set of cables and pins used to connect to different modules, in order to read data, neutralize, virginise, personalise, and activate these modules. The tool also has a fuse relay incorporated, allowing fast password extraction from Mercedes-Benz vehicles.

The ABPROG programmer with Key Renewal Functionality is used to perform many of the special functions of the AVDI

• The following ICs are supported M35080xx, D080D0WQ, D160D0WQ, SPI 95xxx, I2C 24XXX, Microwire 93XXX, MCU in BCM2 of Audi A4/A5/Q5/A6/A7/A8/ VW Touareg, MCU in BCM of Renault Megane III, Scenic III, Fluence. ABPROG programmer (ZN030) including the ZN031, ZN033 and ZN046 adapters. The ABPROG programmer works with the AVDI interface only.
• This package also includes key renewal functionality.
• The ABPROG Programmer is designed as an aid to all AVDI users in some procedures part of our other software.


SET088:

Hardware set for opening and working with 7G-Tronic VGS4-0 NAG2 FBS4 transmission control units for setting to virgin state and personalizing them.

CB403:

An improved version of the CB401, part of the ZN151 ABRITES Distribution Box Set.

:

The CB030 cable is intended for direct connection on bench with the engine control units from BOSCH types MD1, and MG1 in Mercedes-Benz vehicles and vans. The CB030 has two identical connectors with different pinouts for MG and MD ECUs. One of the connectors is specially designed for the MD type of ECUs, and the other is for the MG type of ECUs. Exercise caution and make sure you connect the right type of connector to the ECU (MD or MG) to avoid ECU malfunction.

Functionalities:

• The cable is useful for diagnostic purposes on the bench, and of course, for FLASH/DFLASH programming using EP003 functionality of Abrites ECU Programming Tool.
• Using the MN032 FBS4 Manager license, you can virginize, personalize and extract personalization data from MD1, and MG1 ECUs via the CB030 cable.
• In order to complete the procedures, you can either use the ZN051 Abrites Distribution Box or direct connection to AVDI. When using DS-BOX connect DB25 connector and DB15 connector of CB030 to DS-BOX. When using a direct connection to AVDI, connect the DB25 connector of the CB030 to the AVDI, and the DB15 connector of the CB030 to the black DB15 adapter with switch for ignition. This adapter is then connected to a 12V power supply via DC connector, the ZN074 is ideal for this purpose.

The ABRITES JLR All Keys Lost Cable Set for direct CAN-BUS connection is necessary in some cases during the key programming procedure of JLR vehicles when a direct connection to the CAN-BUS is required. The software automatically detects the platform on which the vehicle is based and prompts the customer when such a connection is required. The cable is connected between the AVDI and the OBDII cable. It is designed with the future in mind - whenever possible, we will design our products so that you can use the same cable set for different functions - saving you the need to purchase many different cables.

:

The CB026 ELV Connection cable is developed to establish a connection between AVDI and FBS3/FBS4 Mercedes-Benz vehicles equipped with an ELV.

The CB026 can be used while working on bench or in the vehicle. It is an essential part of the ESL/ELV Repair procedure, performed using the MN033 license. The cable is also used for procedures with the MN032 license.

ABRITES Mercedes-Benz cable set for EZS, 7G Tronic and ISM/DSM

N.B. Please note that you will require an  with an  in order to use this special function.

ZN082:

Power supply adapter.

:

Compatible

• Mercedes-Benz vehicles with Infrared locks
• Cable for reading data from EIS through Infrared
• Works with software MN026
• New AVDI Interface or activate AMS is required to purchase this product.

:

The TA52 universal BGA Mercedes-Benz key is designed to be programmed to Mercedes-Benz FBS3 vehicles. The key is programmed completely by OBDII and allows for the frequency to be changed from 433 MHz to 315 MHz (and vice versa using the PROTAG programmer.

The key is shipped in a replica shell with a blank key blade.
An AVDI interface with a valid, , and MN026 are required for the key programming.

NOTE: The key can only be programmed using the  and can be programmed multiple times

ALL SALES OF ABRITES PRODUCTS HARDWARE AND SOFTWARE ARE FINAL!
